• Instant drying

  • Continuous evaporation

  • Integrated design, compact structure

YPG Series Spray Dryer For Detergent Powder Vacuum Spray Dryer For Making Soap

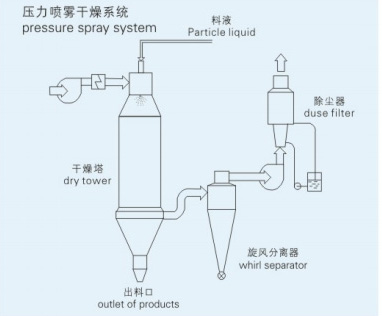

AIPAK YPG series spray dryer for detergent powder is an apparatus that can finish drying and granulating at the same time. The needed ball granule with certain size and ratio can be gotten in accordance with requirements of process to adjust pressure, flow, and size of atomizing hole.The working of this set is as follows: the liquid of raw material is pumped in through diaphragm pump. The liquid of raw material be atomized into tiny droplets. Then it gathers with hot air and falls off. Most parts of powder material will be collected through the outlet of discharged at the bottom. The wasted air and fine powder will be collected through collector at the bottom of cyclone. At the outlet it can also be equipped with two grades of duster. Its ratio of recovery can be above 99%.

product of YPG Series Pressure Spray Dryer

YPG series Spray Dryer For Detergent Powder Application:

Food Industry:full-cream milk powder,Ga prion,cocoa,milk,milk substitute,egg white(yellow).Oats,Jishi,coffee,instant tea,spices seasoning meat,protein,soybean,peanut protein,such as protein hydrolysate.Corn pulp,corn starch,glucose,pectin,maltose,Yamanashi,stuffed potassium,pumpkin powder.

Pharmaceuticals:Extract Chinese medicine,medicine gum,yeast,vitamins,antibiotics,amylase,lipase enzyme.

Plastic Resin:AB,ABS emulsion,urine-formaldehyde resins,phenol-formaldehyde resin,of plastic(urea)formaldehyde resins,polyethylene,polyvinyl chloride,etc.

Detergent:Advanced detergent and ordinary detergent powder,Feizaofen,soda powder,emulsifier,brighteners,phosphoric acid,etc.

Chemical Industry:hydrocortisone sodium(potassium),alkaline with paint,dye intermediates,Mn3O4,Tsuen a silicate,the catalyst,of sulfuric acid,amino acids,etc.

Ceramics:alumina,ceramic tile materials,magnesium,talc,etc.

Other:aluminum hydroxide,calcium chloride,the cooling spray of stearic acid,etc.

applictaion of YPG Series Pressure Spray Dryer

FEATURE

1 .The drying speed is fast. The surface area of liquid raw material after being atomized will be increased greatly. 95-98% of
moisture can be evaporated at a moment. The time of drying needs about ten seconds to several tens of seconds. It is suitable for
drying heat sensitive material particularly.
2. The finished product is ball granule with uniform size. Its fluidity and solubility are good. The purity of product is high and
its quality is good.
3. The scope of application is wide. According to the characteristics of raw material, it can use hot air to dry and can also use
cool air to granulate. It has strong adaptability to raw materials.
4.Small atomizing power
5.Its operation is simple and stable and convenient and is easy to realize automatic operation.

DATA SHEET

Tyoe 50 100 150 200 300 500 1000
Watr evapoatin capacty/kg 50 100 150 200 300 500 1000
Oved dmeraionis/mm 1600 x890 2000x11500 2400x 13500 2800x14800 3200x 15400 3800x 18800 4600x 22500
Hagh-pressure pumpressure Mpa 2-10
Power/KW 8.5 14 22 24 30 82 30
hietar tmpernture/ ℃ 300-350
Product water contens/% c5(可达0.5) Less than 5;and 05 can be reached
Mtarealrstraton/% >97
etrichoting/Kw 75 120 150 When the temperature s lor thah 200 thb pramoters should be calculated acondndnt te pacical cndition.
etalyroducngstem Mpat/kw 0.5+54 0.6+90 0.6+108
Hotir hurnce Kcal/h 100000 150000 200000 300000 400000 500000 1200000
