High frequency motor atomizer
Moisture evaporate rapidly
Can drying heat sensitive raw materials

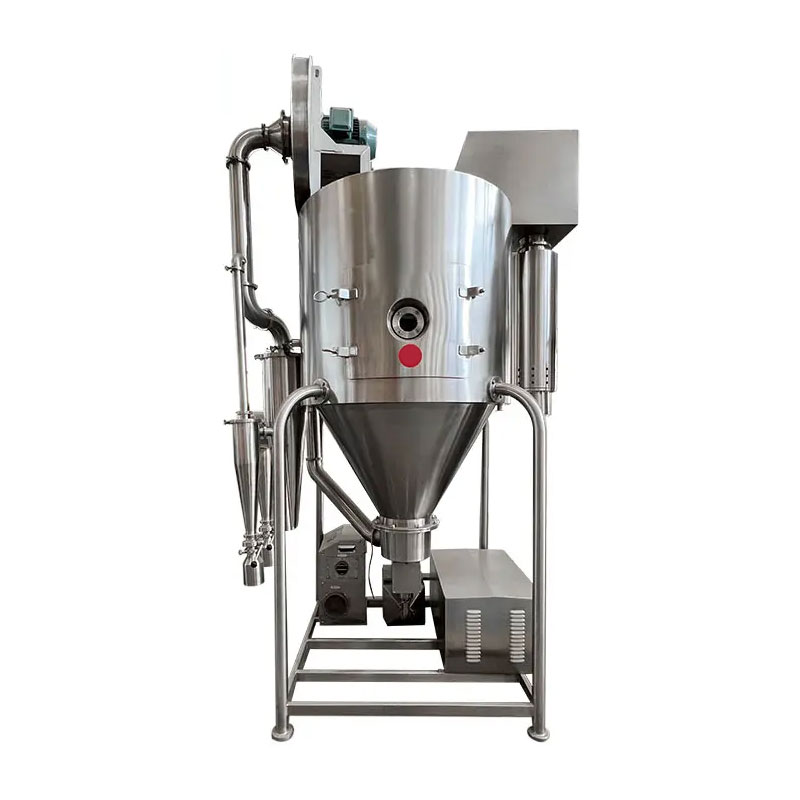

YPG Series Industrial Ceramic Spray Dryer Ceramic mud spray drying equipment

AIPAK YPG series ceramic spray dryer is a widely used process in the liquid process forming and drying industry. It is especially suitable for the production of powdered and granular solid products from solutions, emulsions, suspensions and pasty liquid raw materials. Therefore, spray drying is an ideal process when the particle size distribution, residual moisture content, bulk density and particle shape of the finished product should meet the criteria.

YPG series Ceramic Spray Dryer Application:

Food Industry:full-cream milk powder,Ga prion,cocoa,milk,milk substitute,egg white(yellow).Oats,Jishi,coffee,instant tea,spices seasoning meat,protein,soybean,peanut protein,such as protein hydrolysate.Corn pulp,corn starch,glucose,pectin,maltose,Yamanashi,stuffed potassium,pumpkin powder.

Pharmaceuticals:Extract Chinese medicine,medicine gum,yeast,vitamins,antibiotics,amylase,lipase enzyme.

Plastic Resin:AB,ABS emulsion,urine-formaldehyde resins,phenol-formaldehyde resin,of plastic(urea)formaldehyde resins,polyethylene,polyvinyl chloride,etc.

Detergent:Advanced detergent and ordinary detergent powder,Feizaofen,soda powder,emulsifier,brighteners,phosphoric acid,etc.

Chemical Industry:hydrocortisone sodium(potassium),alkaline with paint,dye intermediates,Mn3O4,Tsuen a silicate,the catalyst,of sulfuric acid,amino acids,etc.

Ceramics:alumina,ceramic tile materials,magnesium,talc,etc.

Other:aluminum hydroxide,calcium chloride,the cooling spray of stearic acid,etc.

FEATURE

1.Particle size control: The dry particle size can be easily controlled by atomization of the liquid feed and the design of the hot gas inlet. This spray dryer can typically produce between 30 to 500 micron average particle size, in a bell shaped

distribution.

2.The evaporative cooling of product: The heat and mass transfer during drying occurs in the air and vapor films surrounding the droplet. This protective envelope of vapor keeps the particle at the saturation temperature. As long as the particle does not become "bone-dry", evaporation is still taking place and the temperature of the solids will not approach the dryer outlet temperature.

3.Short residence time: The surface area produced by atomization of the liquid feed enables a short gas residence time, ranging from 3-10 seconds depending upon the application, which permits spray drying without thermal degradation.

4.Flow properties of dry product: The shape of most spray dried particles is spherical, which provides for fluid-like flow

properties. This makes many downstream operations, such as packaging, pressing, filtering, and handling easier and less costly.

5.Size design of drying chamber: The size of drying chamber is specially designed to prevent droplets sticking to the inner wall, dried powder accumulating on the cone part and guarantee enough residence time.

DATA SHEET

Tyoe	50	100	150	200	300	500	1000
Watr evapoatin capacty/kg	50	100	150	200	300	500	1000
Oved dmeraionis/mm	1600 x890	2000x11500	2400x 13500	2800x14800	3200x 15400	3800x 18800	4600x 22500
Hagh-pressure pumpressure Mpa	2-10
Power/KW	8.5	14	22	24	30	82	30
hietar tmpernture/ ℃	300-350
Product water contens/%	c5(可达0.5) Less than 5;and 05 can be reached
Mtarealrstraton/%	>97
etrichoting/Kw	75	120	150	When the temperature s lor thah 200 thb pramoters should be calculated acondndnt te pacical cndition.
etalyroducngstem Mpat/kw	0.5+54	0.6+90	0.6+108
Hotir hurnce Kcal/h	100000	150000	200000	300000	400000	500000	1200000
