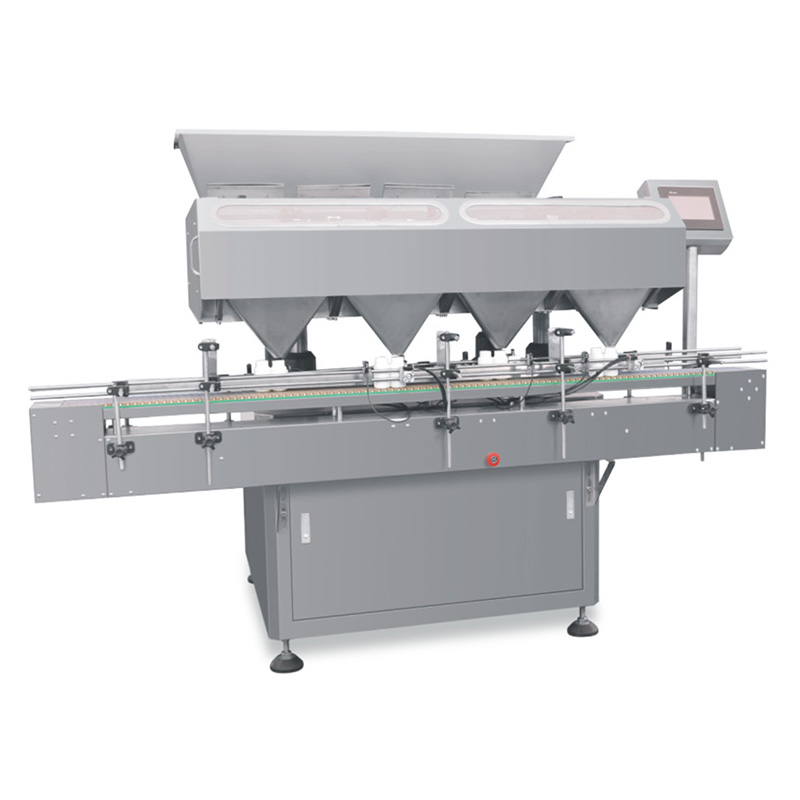

APC-32 auto counter 32 channel tablets counting machine
This machine is the important equipment for the production line of vial solid preparations. It is used for counting and split charging of the tablet including the shaped tablet, hard capsule, soft capsule (various shapes, transparent, nontransparent) and pill. It is able to combine with the vial distributing machine, paper stuffing machine, desiccant inserter, cap screwing machine, electromagnetic induction foil-sealing machine and self-adherence labeling machine to form full-automatic high-speed bottled production line. It has been widely used in the industries such as pharmacy, food, chemical engineering, etc., It is fully conforming to GMP certification requirements.
FEATURE
- Wide applicability,auto counter tablets counting machine used for tablets (including abnormal tablets), capsules, gels (including abnormal gels, transparent gels and opaque gels) pills and most solid granules.
- 32 tunnels vibration feeding, special patent filling part, feeding evenly, no breakage of the material
- Anti-dust, using our own original high anti-dust sensor technology, auto counter tablets counting machine works accurately with good stability in heavy dust conditions.
- Count accurate: photoelectric sensor automatic counting and bottling error is less than the national standard
- Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling.(Optional)
- High-degree of auto counter tablets counting machine , no bottle will not count and fill. Automatically remove bottles of filling abnormalities and a certain size broken tablets. Self-diagnose errors and stop working to make alarm at errors.
- Supporting functions: lack of bottle of photoelectric sensor automatically detection, automatically stop
- Easy to operate: Using intelligent design, in Chinese or Chinese-English menu, various operation parameters according to the need to set, can store 10 groups set parameters, in order to use
- Easy to Maintenance, workers can work with simple training, easy to remove,clean,change parts, and no need tools
- Sealing dust proof, with dust-remove box, reduce dust pollution.(Optional)
DATA SHEET
Product Name:APC-32
Application:
00-5# capsules, soft gels, φ5.5-22 normal tablets, φ3-20 pills
special shape tablets, coating tablets,and some other solid granules
Capacity:
40-120 BPM
18000-54000 Bottles / Shift
Capacity is subject to the type and size of the bottles and raw materials, as well as the quantity filled per bottle.*BMP=Bottles per minute
Working Range:Adjustable from 1-9999 per bottle
Power supply and consumption:220V/50HZ 0.8kw
Size:1850×1100×1400mm
Filling error: ≤ 2‰ bottles
Material :SS316+SS304
Control System: MCU
Pressed Air Supply: 0.6 Mpa
Weight:400kg
| Main technical parameters | ||||||
| Model | APC-8A | APC-12A | APC-16A | APC-24A | APC-32A | APC-48A |
| APC-8B | APC-12B | APC-16B | APC-24B | APC-32B | APC-48B | |
| Applicable | Model A:0~5#capsule,soft capsule,Ф5.5~12 normal tablets,special shape tablets,coating tablets | |||||
| Model B:00~5#capsule,soft capsule,Ф22normal tablets,special shape tablets,coating tablets,Ф3~20 pills | ||||||
| Capacity | 10-30BMP | 20-40BMP | 20-80BMP | 20-90BMP | 40-120BMP | 40-150BMP |
| Working range | Adjust from 2-9999 per bottle | |||||
| Power supply | 220V/50HZ/0.6KW | 220V/50HZ/0.8KW | 220V/50HZ/01.2KW | 220V/50HZ/1.5KW | 220V/50HZ/2.2KW | 220V/50HZ/2.5KW |
| Overall dimension | 1360*1350*1650mm | 1360*1350*1650mm | 1360*1350*1650mm | 1760*1350*1650mm | 2160*1450*1650mm | 2160*1350*1650mm |
| 1360*1650*1650mm | 1360*1650*1650mm | 1760*1650*1650mm | 1760*1650*1650mm | 2160*1650*1650mm | 2160*1650*1650mm | |
| Weight | 250kg | 320kg | 420kg | 450kg | 550kg | 620kg |
| 300kg | 380kg | 550kg | 580kg | 620kg | 680kg | |
| Remarks | 1.Capacity is subjected to the type and the size of the bottles and tablets, as well as the quantity filled per bottle; 2.BPM= Bottles per minute | |||||
Configuration
| NO | Name | Manufacturer |
| 1 | Motor | TQG(Taiwan) |
| 2 | See bottle of photoelectric sensor | OMRON |
| 3 | Count the Photoelectric Head | Adopt Everlight Electronics., Ltd |
| 4 | Pneumatic Components | SMC |
| 5 | Switch button | French schneider |
| 6 | man-machine interface | Adopt Delta-China(Siemens) |
| 7 | Main control chip | Using imported STMicroelectronics co., LTD |
| 8 | The leakage switch | Germany's Siemens |
| 9 | Switching power suppy | French schneider |
