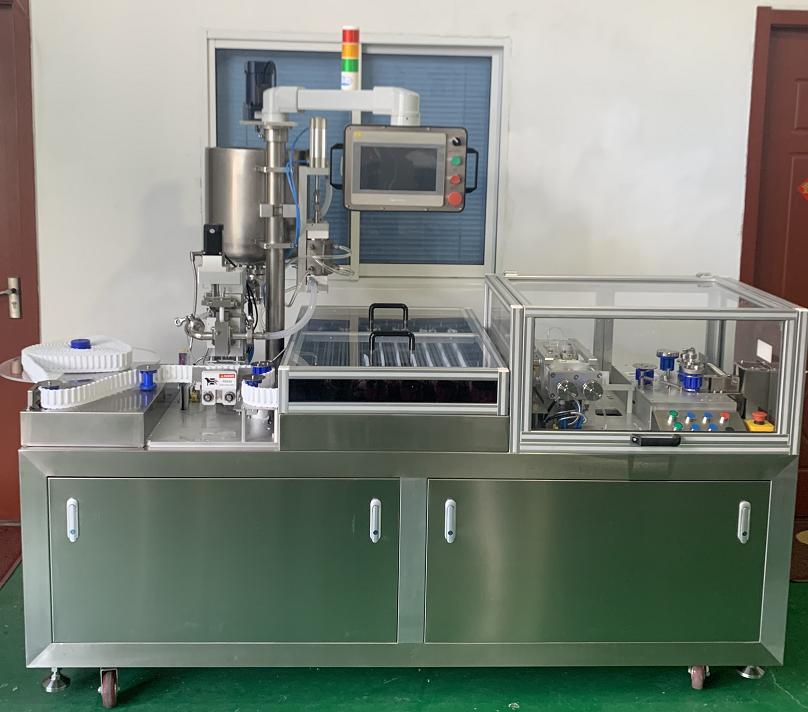

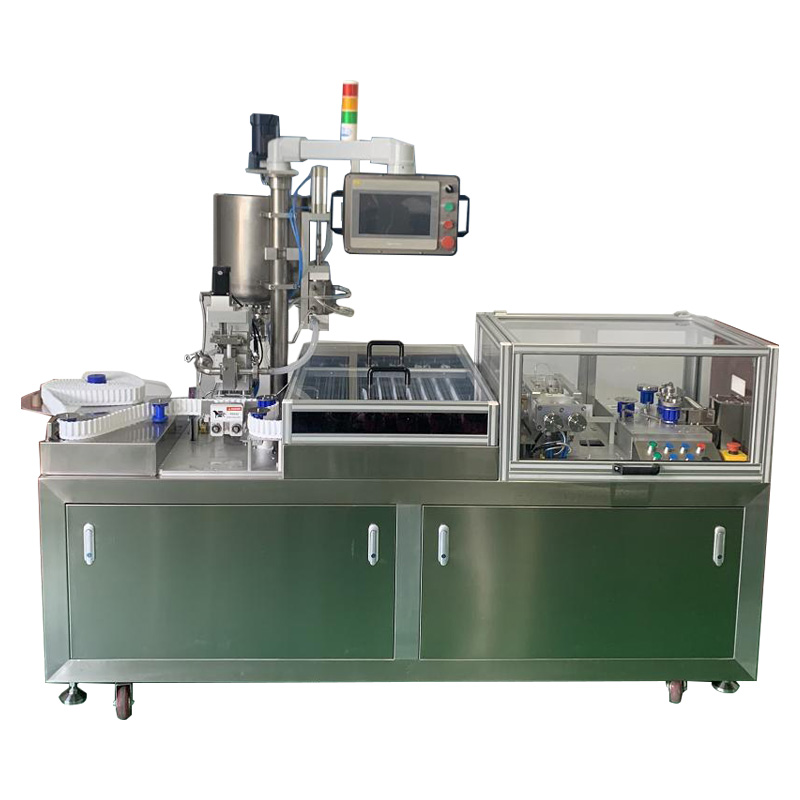

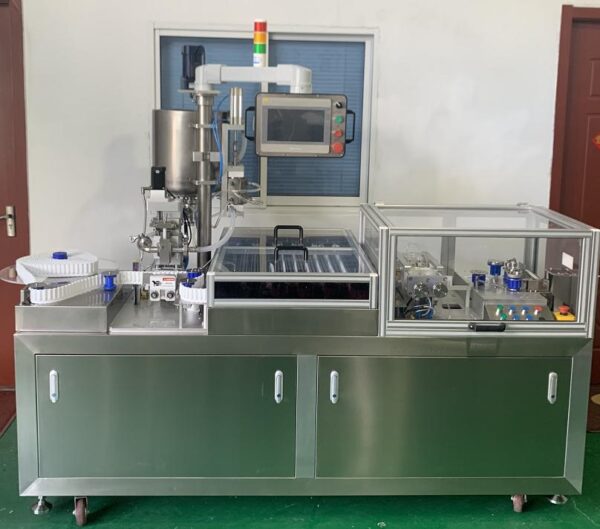

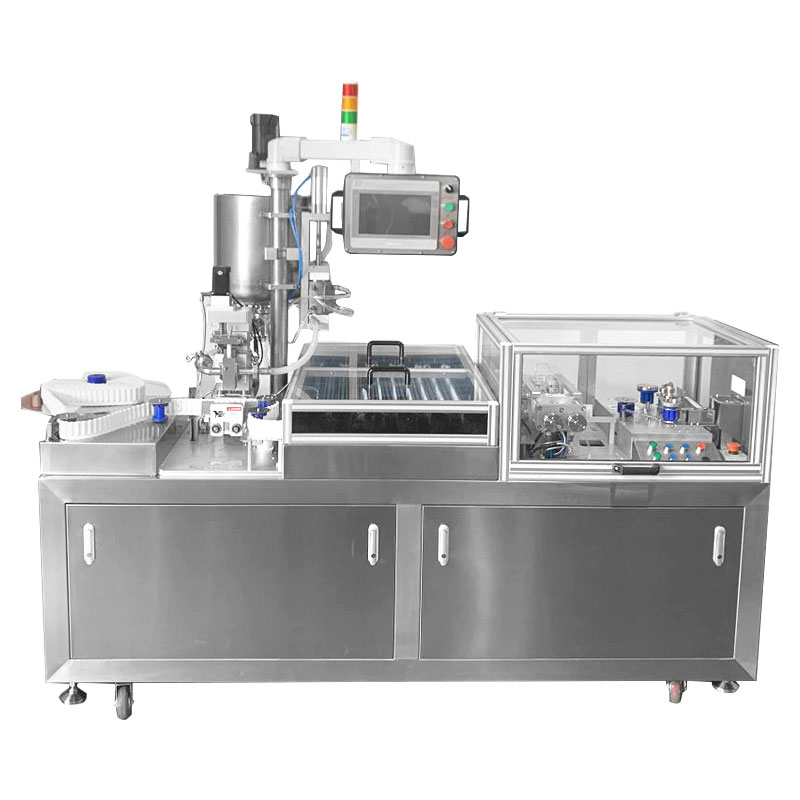

SJ-1L Lab Suppository Filling Machine Production Line

AIPAK SJ-1L suppository filling machine is suitable for the production of suppositories with special shapes such as bullet head, torpedo shape and duck’s mouth shape.It has PLC programmable control and man-machine interface operation, and it is simple to operate, convenient to adjust, with accurate temperature control and smooth operation.

Its temperature sensor and microcomputer control system are adopted to achieve high precision thermostatic control.

Its liquid storage tank is made of 316L stainless steel, with the proper volume, with the function of heat preservation and heating, and accurate temperature control; The tank is equipped with a stirring device to ensure the homogeneity of the liquid in the barrel at any time. The liquid storage tank is connected with the filling mechanism through the pipe, and the medicine liquid is insulated and circulated to ensure the fluidity of the liquid and satisfy the need of filling.

AIPAK SJ-1L suppository filling machine adopts the insertion type linear perfusion mechanism, locate the accurate, not drop the medicine, do not hang the wall; Single grain measurement 0.5-5ml, filling error plus or minus 2%.

It has simple and reasonable design, with easy operation and maintenance.

FEATURE

1.Using inset filling, accurate in position, non-dribbling drug, non-hanging wall, high precise in counting.

2.Be wide in suitability, can be used to fill high gluing degree gelatin group and the traditional Chinese medicine ware.

3.Using PLC written formula control and industry grade person-machine inerface operation , possessing characteristics of high degree autoimmunization \ convenience in adjustment \ high precise thermo-control \ reliability in action and steady in running etc.

4.Having big volume storing fluid vessel, laying homoeothermic \ stirring and fluid surface auto control assembly.

5.Relieving worker’s physical labor strength for lower position of filling drug fluid, laying cycling to supply fluid and keeping thermo equipment of channel pathways, and it will ensure drug fluid not be coagulated when machine stop.

6.One side operation and better sight.

DATA SHEET

Commodity	Full automatic suppository production line	Model	SJ-1L
output	1000-1500 pcs/hour	single dosage	0.5—5ml
dosage allowed	＜±2%	store the capacity of the liquid barrel	20L
consume the tolerance	0.7m3/min	atmospheric pressure	≥0.6Mpa
water quantity	Temperature is adjustable from 5-35 degrees.	the voltage of the power	3P 380V 50 HZ
Adapt to the host	Synthetic fatty acid glycerin, glycerin gelatin, polyethylene glycol, etc.	Total power	≥3KW
Each distance of suppository	17.4mm	Weight	450kg
External dimension	L 2500mmxW 969mmxH 1819mm
