NJP-1200C Fully Automatic Capsule Filling Machine

All Sizes of Capsule Available
High Productivity & Fully Automatic
High Efficient & GMP Standard

NJP-1200C Automatic Capsule Filling Machine

AIPAK NJP-1200C automatic capsule filling machine produced by our company is the innovative product of the third generation. It not only covers all the functions and effects of the domestic capsule filling machine of the same model, but also has six pieces of innovation, two of which has been issued the utility model patent certificate by the national intellectual property administration, PRC at May 11, 2016. The innovative NJP-1200C automatic capsule filling machine has advantages of higher production efficiency and longer service life, and has been well received by customers at home and abroad.

1.Automatic Capsule Filling Machine Working Principle

Capsule-Filling-Machine-Working-Principle-9

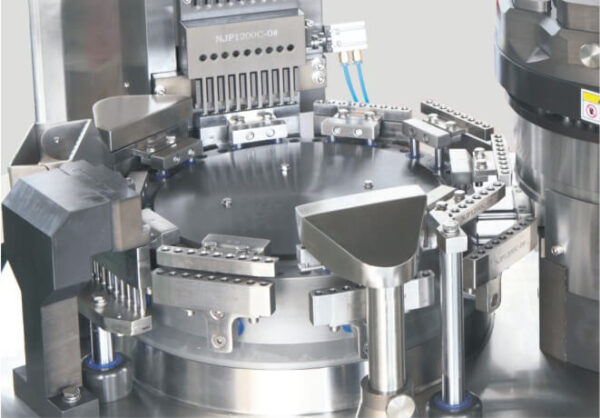

2.Automatic Capsule Filling Station

3.Upper Mold Movement

4.Double Shaft Double Oil Sealing

5.Loading Valve

6.Aviation Material

7.Mold No.

8.Dry Vacuum Pump

9.Safety

10.Specific Details

11.Capsule Filling Complete Process

12.Pellet Filling

13.What AIPAK Automatic Capsule Filling Machine Can

FEATURE

In order to improve the quality and production efficiency of this model, we have made significant improvement on the original 1200C automatic capsule filling machine. The overall machine size has been enlarged, where the main machine dimension is changed to1100×910×2100mm mm.
For ensuring the device quality and production effects: we have selected bigger high precision dividing box, which is better than 1200C automatic capsule filling machine of the same model produced by other companies in domestic industry, who usually use the configuration of 83DS and 83DS cam dividing box, and whose disadvantage is that the filling speed is limited at about 900pcs capsule per minutes in proper working condition. Forcibly increasing the filling speed to about 1000pcs capsule per minutes and continuing the working condition for these machines may cause breaking of the input and output shafts and the subsequent operation stopping. Unlike other companies, we use cam dividing configuration of 100DS, and we are the first one in domestic market to use the 100DS. Although the production cost increases, we have significantly enhanced the device’s production efficiency and service life. Its filling speed has been raised up to about 1100pcs capsule per minutes. Due to these advantages, it has been widely received by customers at home and abroad.

DATA SHEET

Model	NJP-1200C
Filling capacity	72000pcs per hour
Weight	1000Kg
Dimension	1100×910×2100mm
Power supply	380/220V 50Hz
Total power	5.5KW
Segment bores	9 holes
Vacuum	40m³/h-0.04-0.08Mpa
Dust collector	24.5Kpa 210m³/h
Air compression	Air consumption 5m³/h Pressure 5-7Kg
Water source	500L/h 0.1-0.2Mpa
Operating noise	<75DB(A)
Filling percentage	Empty capsule 99.9% filled capsule 99.8%
Capsule size	00,0,1,2,3,4,5#
Filling accuracy	Western medicine ±3% Chinese medicine ±4%
Suitable for	Powder, Granule, Pellet, Tablet.
