Simple and easy to load materials
Convenient discharging
All stainless steel 304, durable and easy to clean

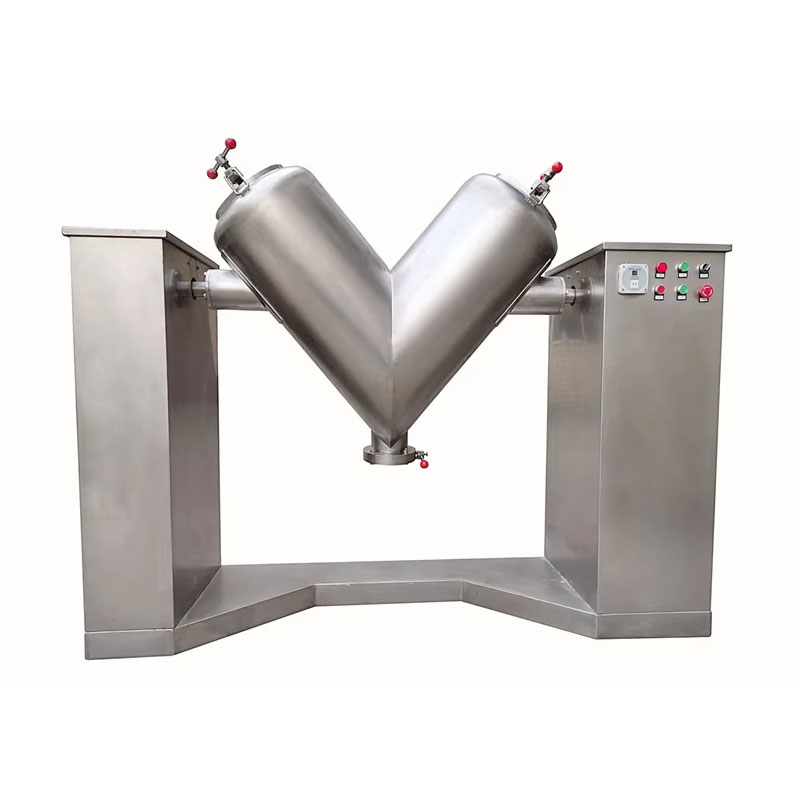

Industrial Pharmaceutical Food Powder V Mixer Machine

AIPAK V mixer machine is commonly used in nutriceutical, chemical, food and related industries to mix dried powder and granules with good flowability. The machine consists of two V-shells of different or same altitudes,and through mechanical transmission,the meterials in these shells are made to move back and forth, crossed over and rotate 360 degree to achieving ultimate uniform mixing. All V mixer machines have the characteristics of simple structure, easy operation and pretty appearance. Its parts in contact with materials are made of stainless steel, which conforms to the CGMP.

FEATURE

1.Fast mixing of dry powder or small granules with good flowability

2.Mixing chamber volume: 50-2000L

3.GMP design

4.Agitator can be equipped to strengthen the mixing effect

5.Can work with vacuum conveyor to achieve automatic feeding and prevent dust

6. Compact structure, operation simple and maintenance convenience.

7. Using stainless steel material, prevent the mixing materials from being polluted.

8.No dead angle, no accumulation of materials, high speed, short mixing time and high uniform mixing.

9. Running steady and lower noise;

10. Equipped with a timing device, it can set mixing time to realize automatic stop.

DATA SHEET

Type	Total volume(L)	Effective volume(L)	Rotary speed(rpm)	Power(kw)	Weight(kg)
APK-50	50	20	25	0.4	260
APK-100	100	45	22	0.55	350
APK-300	300	154	20	0.75	600
APK-500	500	210	18	1.5	700
APK-1000	1000	425	15	3	1800
APK-1500	1500	700	15	4	2300
APK-2000	2000	800	14	5.5	3400
APK-3000	3000	1250	14	5.5	4250
APK-4000	4000	1850	14	7.5	5500
APK-5000	5000	2300	14	7.5	6000
