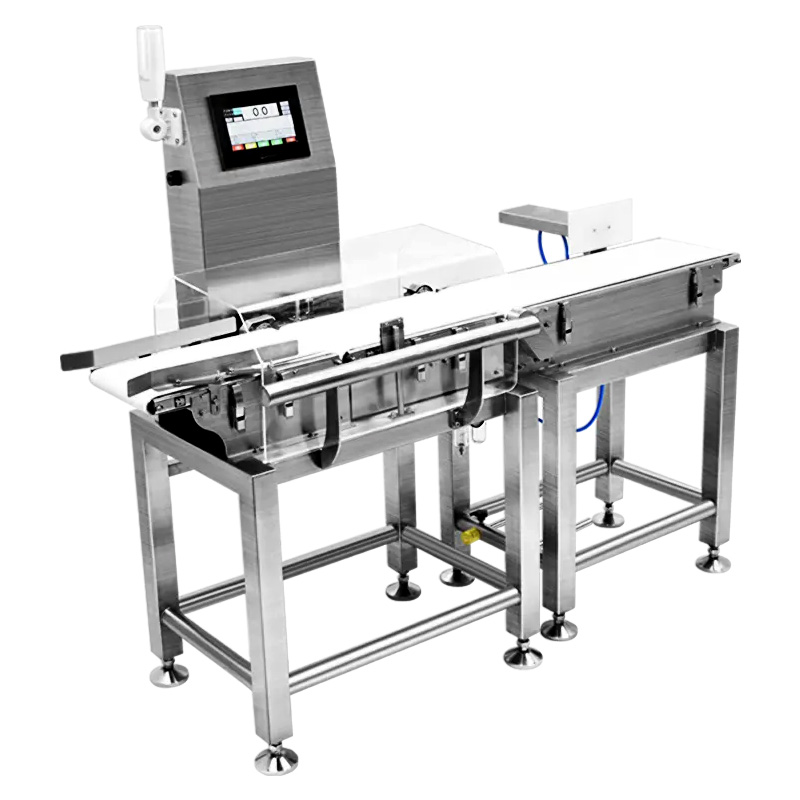

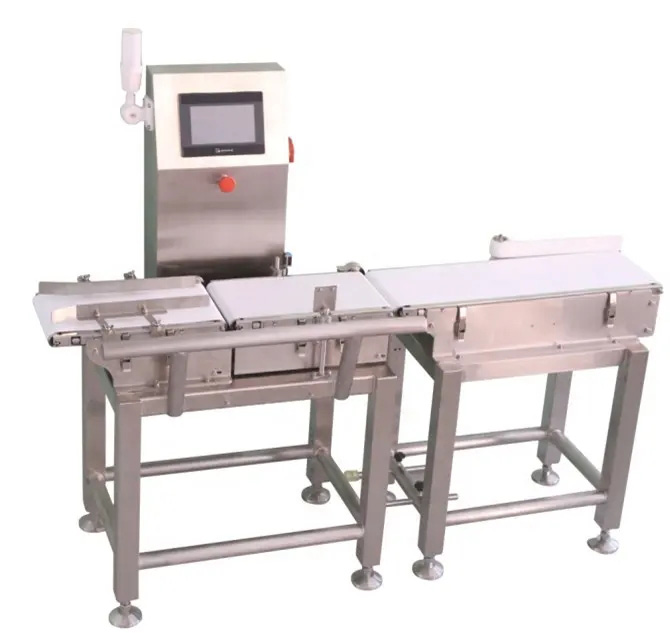

High Accuracy&Speed Checkweigher For Food &Pharmaceutical Industry

Strong versatility: the standardization structure of the whole machine and the standardized man-machine interface can complete the weighing of various materials;

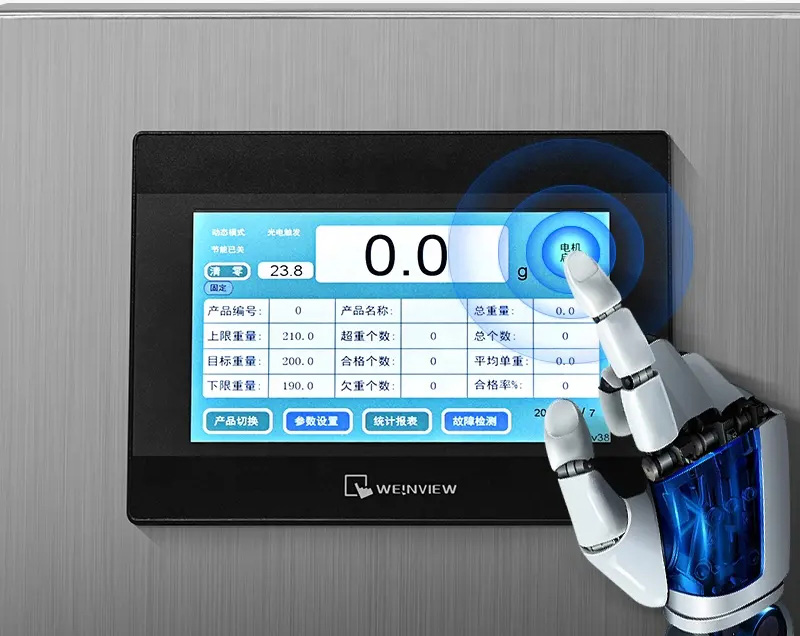

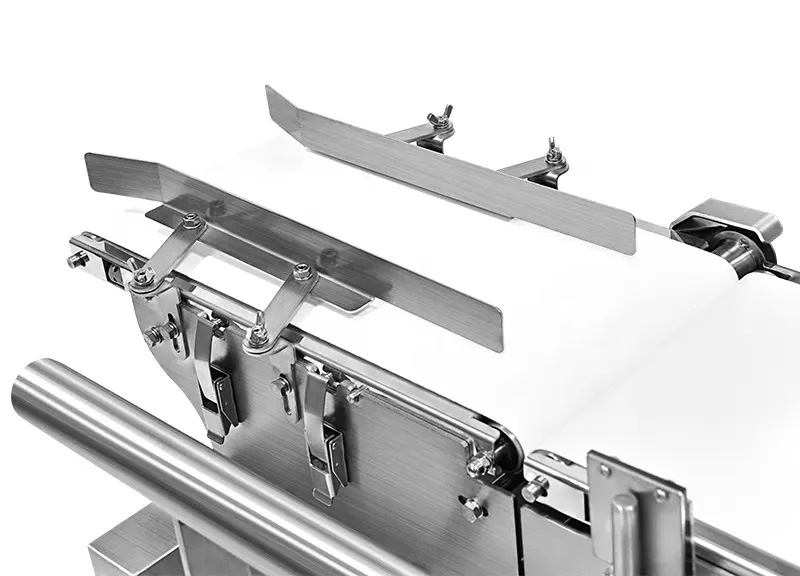

Simple operation: Fully intelligent and humanized design using Weilun color human-machine interface; conveyor belt is easy to disassemble, easy to install and maintain, easy to clean;

Speed adjustable: The motor is controlled by frequency conversion, and the speed can be adjusted according to needs;

High speed and high precision: high precision digital sensor, fast sampling speed and high precision;

Zero tracking: can be manually or automatically cleared, and dynamic zero tracking;

Report function: built-in report statistics, the report can generate EXCEL format, can automatically generate a variety of real-time data reports,U disk can store more than 1 year of statistical data, support the production status at any time; provide factory parameter setting recovery function, and Store a variety of recipes, easy to replace product specifications;

Interface function: reserved standard interface, convenient data management, communication with PC and other smart devices;

Self-learning: no need to set parameters after creating new product recipe information, use the self-learning function to automatically set the device suitable parameters, and save it for convenient call when switching products next time. (The parameter storage entry is 100, which can be increased).

Operation mode: three operation modes

Dynamic mode: normal pipeline mode;

Static mode: After the material enters the weighing platform, the weighing platform stops running, and the weighing is performed to improve the accuracy, which is suitable for products with less than 20 passes per minute;

Energy-saving mode: (optional) The energy-saving mode can be turned on on the basis of a and b modes, and no material is set to pass the shutdown time. When the equipment is idling, it will automatically stop after the long time, and then automatically start when there is material passing.

Fault self-test: It can detect by itself: whether the motor, inverter, AD, sensor and photoelectric are normal and the cause of the fault and the guidance detection of the cylinder, solid state relay and solenoid valve. Convenient for non-professional inspection and maintenance.

Peripheral device communication: standard RS-485 and RS-232 dual communication port output.

RS-485 interface is MODBUS, RTU standard protocol but can modify the write address (57600bps, 8, N, 1, slave station number 3) can not be modified.

(Optional) The RS-232 interface is a custom protocol, and you can set the command to send the content yourself. (57600bps, 8, N, 1) can be modified.

An external printer or printer can communicate with the device, or it can be connected with the front and rear packaging machines and production equipment to feedback the weighing result so that the recipe parameters can be automatically modified.

Chinese input method

The formula name can be entered in Chinese, and it is more intuitive to find the switching recipe.

With the RS-232 communication port, it is possible to send Chinese characters of Unicode strings to peripheral devices. (It is suitable for external printers or marking machines to print Chinese characters).
