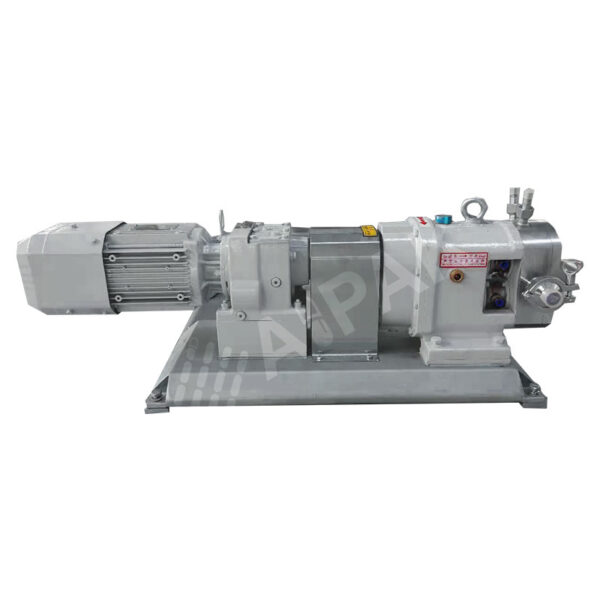

Gummy Making Machine Transfer Pump

Description:
AIPAK gummy making machine transfer pump also can be called LOBE pump,which is also made by slurry pump body, motor.Tjis part is mainly used to transfer syrup to the storage tank or Depositor
.The transfer pump’s capacity is formed by the synchronous reverse rotation of the two rotors and the pump cavity changes from larger.With continuous rotation that makes the material transfer to the independent space of the rotor and pump cavity.And at the exit, the space formed is reduced by the synchronous reverse rotation of two rotors.

FEATURE

Seal type: mechanical seal

seal Configuration: conventional mechanical seal;

water cooling mechanical seal;

oil lubrication mechanical seal;

no leakage cycle pressurized mechanical  seal;

Material: hard alloy, silicon carbide, graphite, etc. Seal O ring material: fluorine rubber, fluorine rubber, perfluoro ether, etc.

Note: special conditions can be equipped with packing seal.

Transfer Pump

DATA SHEET

Including Parts

slurry pump body, motor

Standard diameter

1.5 inch

Speed

1420r/min

Standard flow

3.3 m3 / h, 55l/min

Outlet Pressure

0.32MPa

Motor Power

1.1kw

Voltage

220V/380V/415V

Dimension

980 x 350 x 400mm

Weight

80kg

Material

Cup head stainless steel 316

Usage

Transfer syrup to the storage tank or Depositor
