No dust or slurry splashing
High efficiency,low energy consumption
Easy to clean and operate

Fully Automatic Granular Products Nuts Peanuts Sunflower Seed Coating Machine

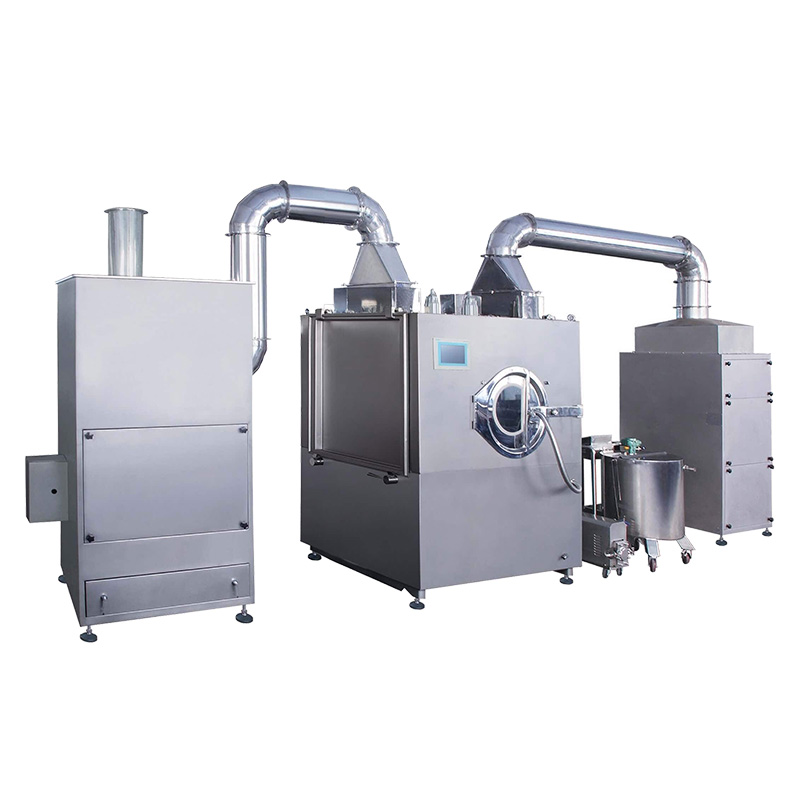

AIPAK seed coating machine is composed of the main frame , controllable normal temperature hot air system, automatic fluid supply and air supply spraying system, etc. The speed can be controlled, the coating accessories using high atomization spray to seeds surface by the method of automatic electrical control. Meanwhile, the seeds make continuous and complex track movement in the coating pan; Let the coating fluid cover the seed evenly. The controllable normal-temperature hot air in the pan will dry the seeds at the same time; Let the seeds rapidly form a firm, fine, complete and smooth surface film.

Products of AIPAK Seed Coating Machine:

FEATURE

1.During air intake, three times filtration involving primary filtration, medium filtration and high filtration, can reach 100,000 level purification. During air exhaust,It adopts a bag-type dust extractor.

2.A specially designed air source exchange system.

3.The specially designed imported spray gun features easy to operate and control relevant technological requirements, uniform density and particle size, uniform atomization and large spray area, practical to adjust flow, angle and sector, economization on dressing, free leakage and blockage.

4.PLC automatic control of such process parameters as negative pressure, air flow and temperature etc, automatic run of various process flow in sequence.

DATA SHEET

Item Model		BG-40	BG-80	BG-150	BG-250	BG-400
Maximum capacity(kg)		40	80	150	250	400
Roller speed adjust range		2-20	2-20	2-18	2-15	2-15
Main machine outline dimension(LxWxH)		1080x900x2000	1210x1000x2100	1600x1260x2300	2000x1550x2550	2050x1680x2650
Coating roller diameter		Φ820	Φ940	Φ1200	Φ1500	Φ1580
Main machine motor power		1.1	1.5	2.2	3	4
Hot air cabinet motor power		0.75	1.1	1.5	3	3
Exhaust cabinet motor Power		2.2	3.0	5.5	7.5	7.5
Exhaust cabinet air supply volume		2500	2700	3600	4200	5000
Hot air temperature control range		< 80	< 80	< 80	< 80	< 80
Power supply	Three-phase-five-wire	12kw,380v	15kw,380v	18kw,380v	25kw,380v	32kw,380v
Air supply	Clean compressed air	>0.40	>0.40	>0.40	>0.40	>0.40
	Compressed air consumption	0.3	0.4	0.6	0.8	1.2
Steam	Steam pressure	>0.6	>0.6	>0.6	>0.6	>1.14
	Steam consumption	40	60	80	110	130
	Steam pipe diameter	G1"	G1"	G1"	G1.2"	G1.2"
Heat insulation barrel electric heating power		1kw	2kw	2kw	4kw	4kw
