Every filling head has anti-drop design
Adjust filling volume
Take off piston cylinder cleaning
Want A Free Consultation

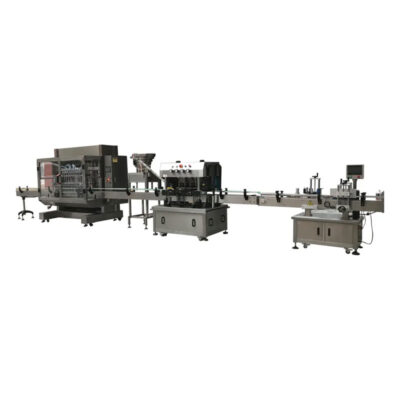

Engine Gear Motor Lube Oil Lubricant Filling Machine Automatic liquid filling line
AIPAK engine gear motor lube oil lubricant filling machine adopts piston pump and rotary valve, suitable for filling all kinds of thick & sticky material.In food industry like edible oil, yogurt, tomato paste, chilli sauce, honey, butter, ketchup lunch meat etc.In cleaning liquid and cosmetic industry, like shampoo, liquid soap, hand sanitizer, laundry detergent, shower gel, cream, lotion, hair gel, etc.In car products industry, like motor oil, lube oil, antifreeze, brake fluid, fuel additive, screen cleaning liquid etc.In pharmaceutical industry, like syrup, oral liquid , alcohol etc.The machine can be made with 4 filling heads/ 6 filling heads/ 8 filling heads/ 10 filling heads/ 12filling heads ,16 filling heads, 18 filling heads etc, according to the filling capacity customers needed.

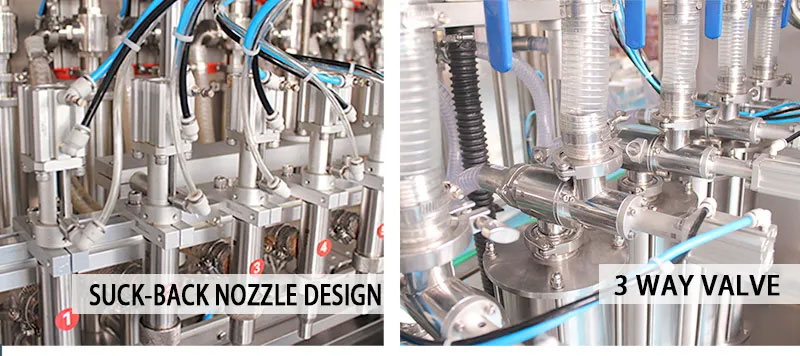

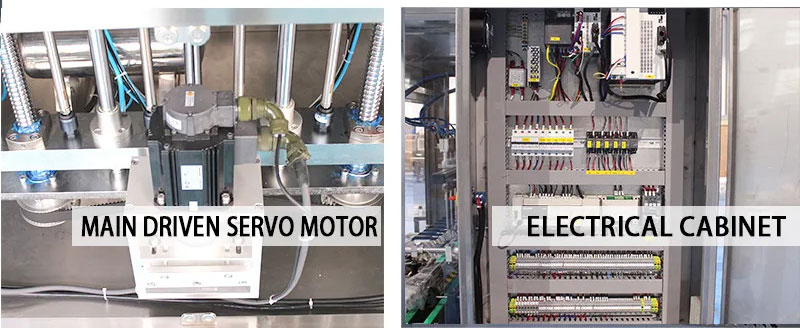

Details Of AIPAK Lubricant Filling Machine
Products Of AIPAK Lubricant Filling Machine
FEATURE
- Adopt PLC control,touch screen operation can save multiple groups of data
- All material touched parts are made of 316(L) stainless steel,measure up to GMP standard.
- Filling nozzle with anti-leaking function
- With automatic detection,container positioning function,no container no filling.
- Piston adopts SS316L,seals import from Germany,can sendure acid/alkali,corrosion and high temperature.
DATA SHEET
| Filling capacity | 600-1200 barrels/hour |
| Number of filling heads | 4/6/8/10 |
| Applicable Specifications | 1-4L square barrel, round barrel |
| Filling accuracy | ±0.1% |
| mains power | 380V/50Hz；12KW |
| Air pressure | 0.6MPa |
| Scope of application | Precise filling of liquid products such as coatings, chemicals, paints, etc. |
