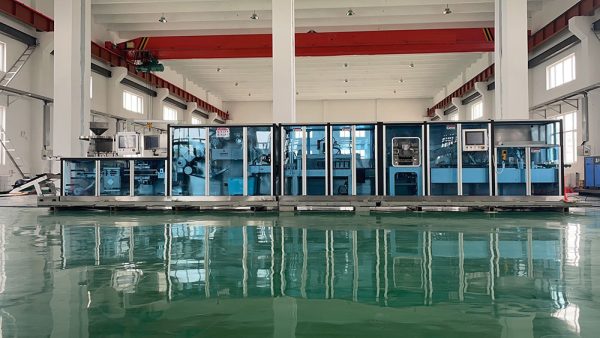

DPH380DLS-DXH400S High speed blister packaging and automatic cartoning linkage production line
AIPAK DPH380DLS-DXH400S high speed blister packaging and automatic cartoning linkage production line is suitable for the continuous automatic packaging of various medicine products.This production line adopts full servo control, modular design, with high intelligentized degree, fast speed. It can enhance productivity, reduce labor intensity and lower production cost. Furthermore, it completely conforms to the requirements of national GMP pharmaceutical production quality management regulations.Equipped with advanced computer control system,the linkage production line can realize product statistics, equipment operation statistics, fault repair index and various packaging materials, detection, alarm and emergency automatic shutdown to ensure safe and accurate production line operation.
FEATURE
1.High yield and high efficiency
2.Mold can be replaced quickly
3.Material saving by product blanking
4.More beautiful straight line connection
5.Formula parameters can be called quickly
6.It can return to the original point for servo multi axis synchronous adjustment
DATA SHEET

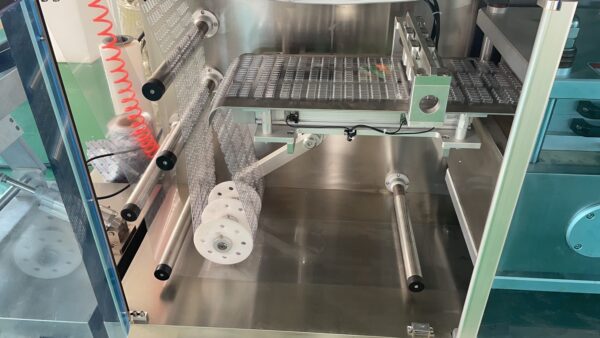

| dph-380dls high speed blister packaging machine (full servo) | ||
| Project | parameters | |
| blanking speed (Standard Version 90mm & (57mm) | 80-120 times / min (aluminum plastic aluminum & (60; 100) | |
| production capacity | version 240-300 / min | |
| optional range of feed stroke | 20-120 mm | |
| forming area | 360X260mm | |
| forming depth | ≤13mm | |
| packaging < br > Material | medical PVC | 0.25X380mm |
| aluminum foil PTP | 0.02X380mm | |
| gas consumption | ≥30 m3/h | |
| compressed air pressure | 0.6-0.8Mpa | |
| power supply and total power | three phase five wire 380V 50Hz 28KW | |
| overall dimension (length x width x height) | 6550X1030X1750mm | |
| weight | 3500Kg | |

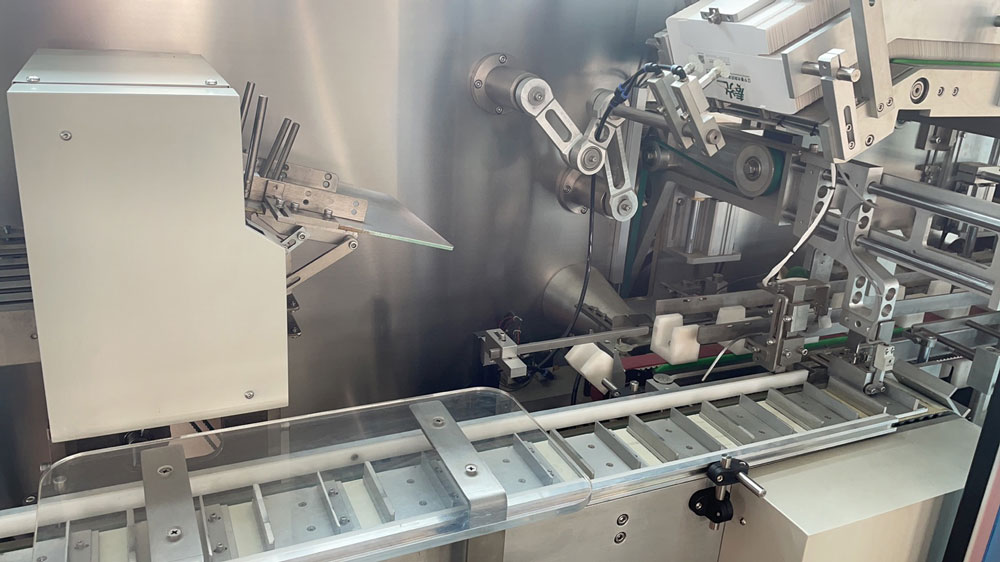

| dxh-400s high speed box loader | |
| Project | parameters |
| loading speed | 100-400 boxes / min |
| block size (L * w * h) | （65-105）*（30-70）*（4-12）mm |
| carton size (L * w * h) | （90-170）*（35-85）*（15-50）mm |
| instruction size (L * w * h) | （100-320）*（100-210）mm |
| gas consumption | ≥2 m3/h |
| compressed air pressure | 0.5-0.7Mpa |
| power supply and total power | three phase five wire 380V 50Hz 10kw |
| overall dimension (length x width x height) | 5100X1700X2300mm |
| weight | 6000Kg |
