No bottle no filling, no bottle stop and overload protection
High precision, no need tool disassembly
Easy cleaning and maintenance
Want A Free Consultation

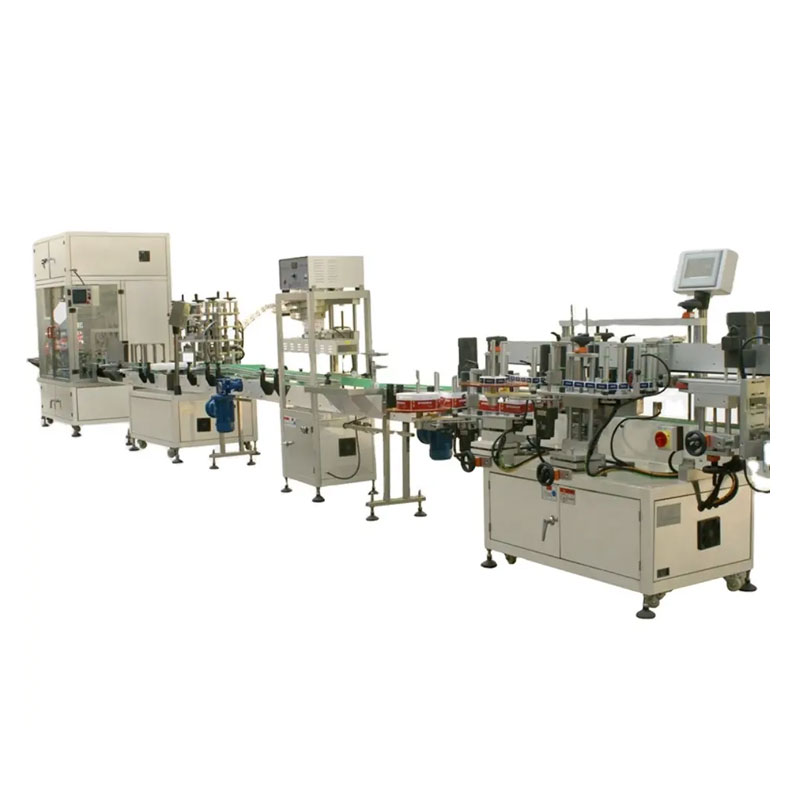

Curing Agent Can Filling Machine Automatic liquid filling line
AIPAK curing agent automatic liquid filling line is suitable for filling 1-4L by weight,and automatically completes a series of operations such as counting into barrel,filling by weight,and conveying out barrels.It is especially suitable for quantitative filling of water agent and raw materials.The curing agent automatic liquid filling line is an ideal production line for petrochemical,paint,pharmaceutical,chemical and other industries.The whole machine adopts programmable logic controller(PLC) and touch screen for operation control,which is convenient to use and adjust.
FEATURE
1.The equipment has strong compatibility, and can quickly adjust and replace bottles of different shapes and specificationswithout replacing parts, which can meet the production requirements of multiple varieties and
specifications
2.PLC control ,touch bottle operatation ,simple and convenient operation.
3.The use of internatioal famouse brand electrical components, performance and stability.
4.User can adjust filling range, the materials is not enough in hopper, the computer will give the feeding pump signal to addmaterial by level sensor. When the material is full, the pump will stop automatically.
5.Machine body is made by 304 stainless steel, easy to clean, machine is full compliance with GMP requirements.
6.Peristaltic pump or piston pump filling system, measuring precision, convenient manipulation
DATA SHEET
| Filling capacity | 600-1200 barrels/hour |
| Number of filling heads | 4/6/8/10 |
| Applicable Specifications | 1-4L square barrel, round barrel |
| Filling accuracy | ±0.1% |
| mains power | 380V/50Hz；12KW |
| Air pressure | 0.6MPa |
| Scope of application | Precise filling of liquid products such as coatings, chemicals, paints, etc. |
