CT-C Series Hot Air Circulation Oven Industrial Circulating Drying Oven

Heat efficiency is high
Low in the noise
The temperature is controlled automatically

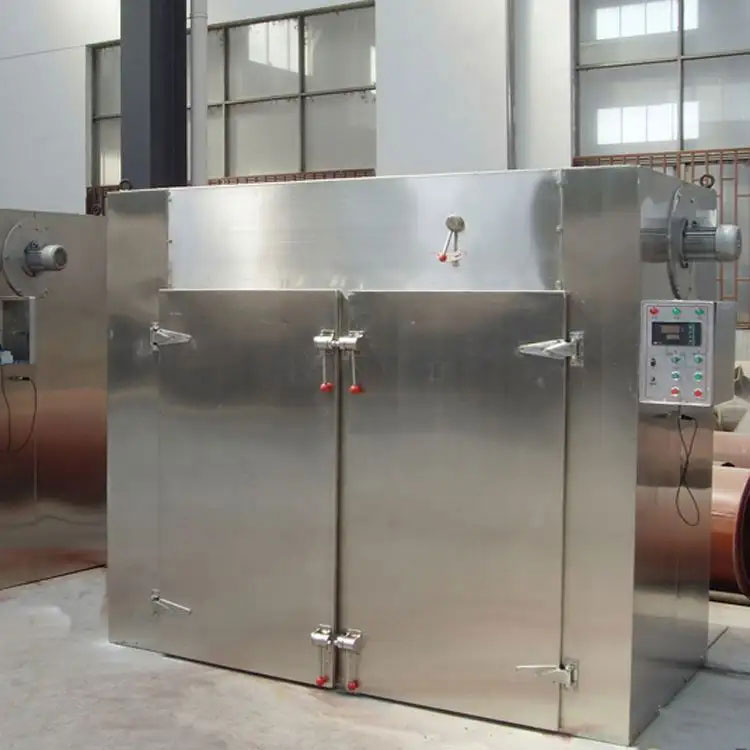

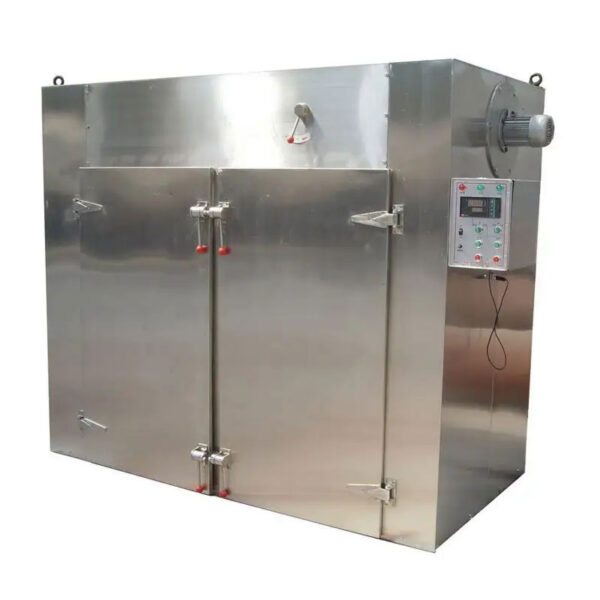

CT-C Series Hot Air Circulation Oven Industrial Circulating Drying Oven

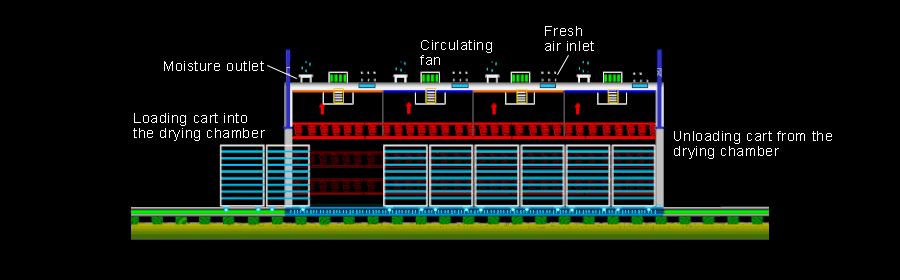

AIPAK CT-C series hot air circulating drying oven uses a low noise and high temperature proof axial flow blower and an automatic temperature control system. The whole circulation system is the fully enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-45% of the present one.

The highest heat efficiency can reach 50%. The successful design of CT- C hot air circulation drying oven makes that the hot air circulation drying oven in our country reach the advanced level both at home and abroad.

CT-C Series Hot Air Circulation Oven Applications:

Applicable to the pharmaceutical,chemical,food,agricultural and sideline products,aquatic products,light industry,Heavy industries,such as heating materials and products curing,drying dehydration.Raw materials such as medicine,health medicine,Chinese medicine Pieces,extract,powder,granules,granules,Shuiwan,bottles,paint dyes,dehydrated vegetables,melons and other fruits dry sausage,plastic resins,electrical components.

CT-C Series Hot Air Circulation Oven Explanation:

1.The heat source can be steam, heat conductive oil,electricity or far infrared. Customers can select one of them in accordance with practical conditions.

2.Temperature for steam:140℃-150℃.

3.Temperature for electricity or far infrared:350℃.

4.There are automatic and computer control system for customers to choose.

5.The normal steam pressure:0.2-0.8MPa.

6.Power for electricity heat source will be 15KW calculated as Model I. Practical power to be used will be 5-8kw/h.

7.lf any special requirements, pleaseindicate it when order.

8.Parameters for non-standard ovens shall be discussed separately according to different conditions.

9.If the operating temperature is higher than 14℃ or lower then 60℃, please indicate it when order.

10.The drying trollies and trays are of a standard size and can be exchanged with one another.

11.The size of drying tray:460x 640x45mm.

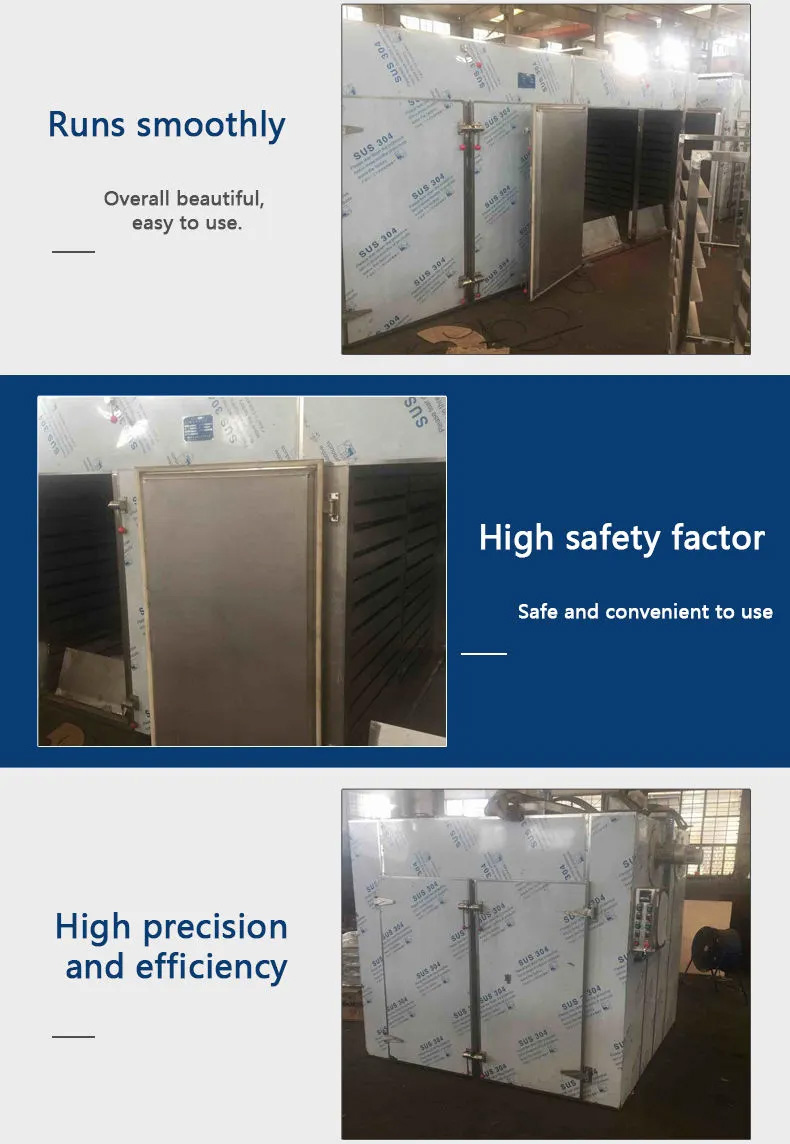

CT-C Series Hot Air Circulation Oven Details:

FEATURE

Most of hot air is circled inside the oven.The heat efficiency is high and the energy cource can be saving.
Using enhanced ventilation and adjustable air separating boards.It can make materials dried uniformly.The heat source can be steam,heat conductive oil,electricity or far infrared.
The machine makes little noise and can be operated stably.The temperature can be controlled automatically and the installation and maintenance are all very convenient.
With wide scope of application,it is suitable for drying varieties of materials.So it is a current type of drying equipment.

DATA SHEET

Model specification	CT-C-0	CT-C-I	CT-C-II	CT-C-III	CT-C-IV
Dry amount each time (kg)	60	120	240	360	480
Equipped power (kW)	0.45	0.45	0.9	1.35	1.8
Consumption of steam (kg/h)	10	18	36	54	72
Area of radiation(㎡)	10	20	40	80	100
Amount of air (m³/h)	3450	3450	6900	10350	13800
temperature difference between up and low(°C)	±2	±2	±2	±2	±2
Amount of drying tray to be equipped	24	48	96	144	192

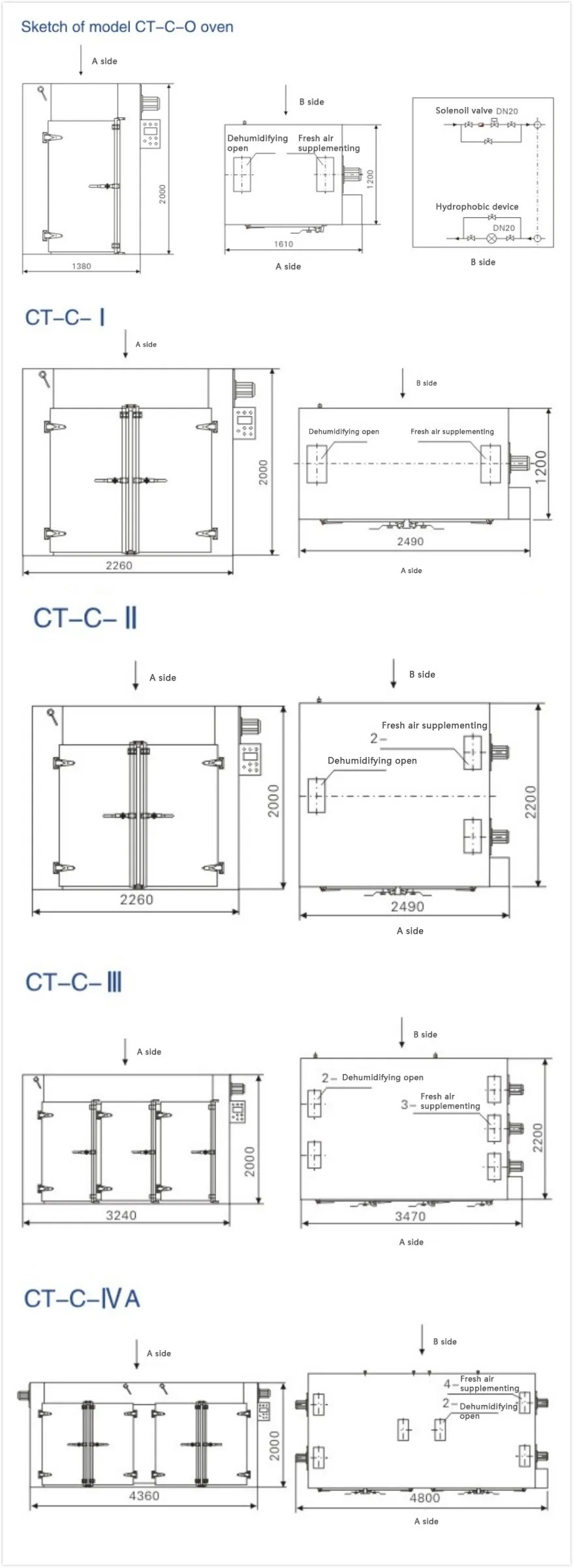

Overall dimensions WxDxH(mm)	148011001750	230012002000	230022002000	23003200 2000	44602200 2290
Equipped drying trolly	1	2	4	6	8
