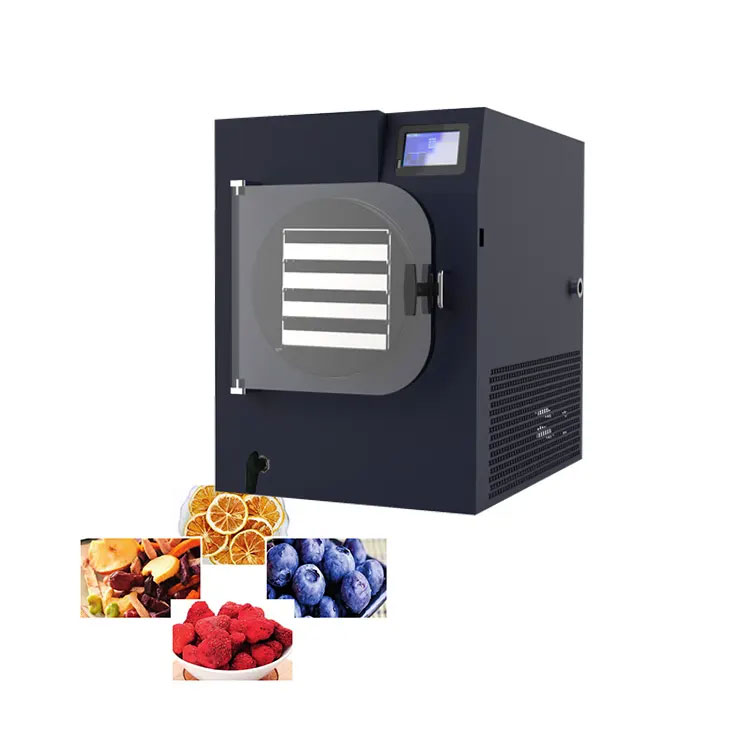

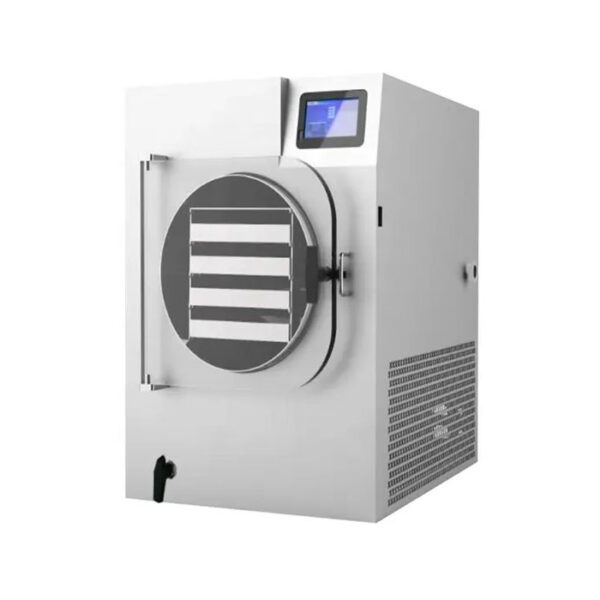

Commercial Fruit And Vegetable Dryer Machine Vacuum Freeze Drying Machine

Commercial Fruit And Vegetable Dryer Machine Vacuum Freeze Drying Machine-1

Hot air circulation system
Large capacity, quickly dehydrating food
Easily operate and clean

Commercial Fruit And Vegetable Dryer Machine Vacuum Freeze Drying Machine Liofilizadora Freeze Dryer Machine Of Coffee Powder

AIPAK commercial fruit and vegetable dryer machine is widely used in food, fruit, vegetable, fish, sea cucumber, shrimp, meat drying industry, chemical and biological industry etc. The dried product dried by freeze dryer is with good taste, beautiful color and good shape.

The equipment adopts Skop compressor and Taikang compressor imported from Europe, which are adjusted by technology, durable in quality and compact in size. The operating system is equipped with vacuum pump protection mechanism. The parts that can contact materials are made of 304 stainless steel and food-grade silica gel, equipped with low-noise vacuum pump, about 60 decibels.

AIPAK Commercial Fruit And Vegetable Dryer Machine Working Principle:

Fresh or cooked foods are placed in the dryer where they are frozen to -40 degrees Fahrenheit or colder.
Once the food is frozen, the freeze dryer creates a powerful vacuum around the food. Then, as the food is slightly warmed, the ice transitions into vapor and evaporates.
The freeze-dried food is then sealed in moisture and oxygen-proof packaging (Mylar bags, mason jars, or cans) along with an oxygen absorber to ensure freshness until opened.
When water is added to the food it regains its original fresh flavor, aroma, and appearance!

AIPAK Commercial Fruit And Vegetable Dryer Machine Processed Products:

FEATURE

1.LCD Touch screen,low noise, large capacity.

2.The controller is moved to the top left corner for easy operation.

3.Automatic one-key start PLC control system throughout the complete freeze drying process.

4.Low voltage operating current and low energy consumption.

5.Solid stainless steel sample tray and chamber reliable for sample safety and easy for cleaning.

6.Clear organic glass door with direct observation of sample processing.

7.Optional: stainless steel exterior and oil-free vacuum pump.

DATA SHEET

Drying Chamber	Freeze-drying area	0.4m2
	Layers of shelf	4
	Temperature scope of shelf	-20℃ +70℃ (no-load)
	Shelf spacing	45mm
	Size of shelf	200mm* 540mm
Condenser	Min. Temperature of condenser	≤-45℃(no-load)
	Water-capture capability	>4Kg
	Liquid material	4L (Thickness 10mm)
	Defrosting	Natural defrosting
	Final vacuum degree	≤10Pa
	Style of cooling	Fan cooling
Main functions	Manual + Auto Control Mode; Sensor calibration; Intelligent temperature control; Freeze drying termination reminding and other funections are available.
