Automatic measuring, feeding, filling, bag making, printing
Food grade stainless steel 304, safe and durable
Easy to operate and maintain

Automatic Multi-head Weigher Gummy Jelly Candy Packaging Machine

AIPAK multi-head weigher gummy packaging machine is capable of packaging gummies in different pouch types,like pillow pouch,gusset pouch,quad seal stand up pouch,etc.It is easy to change the pouch format in minutes for different pouch size without complicated process.With Panasonic PLC control system and human machine touch screen,double servo motor,this gummy packaging machine is able to achieve accurate positioning,fast smoothly speed and stability running.

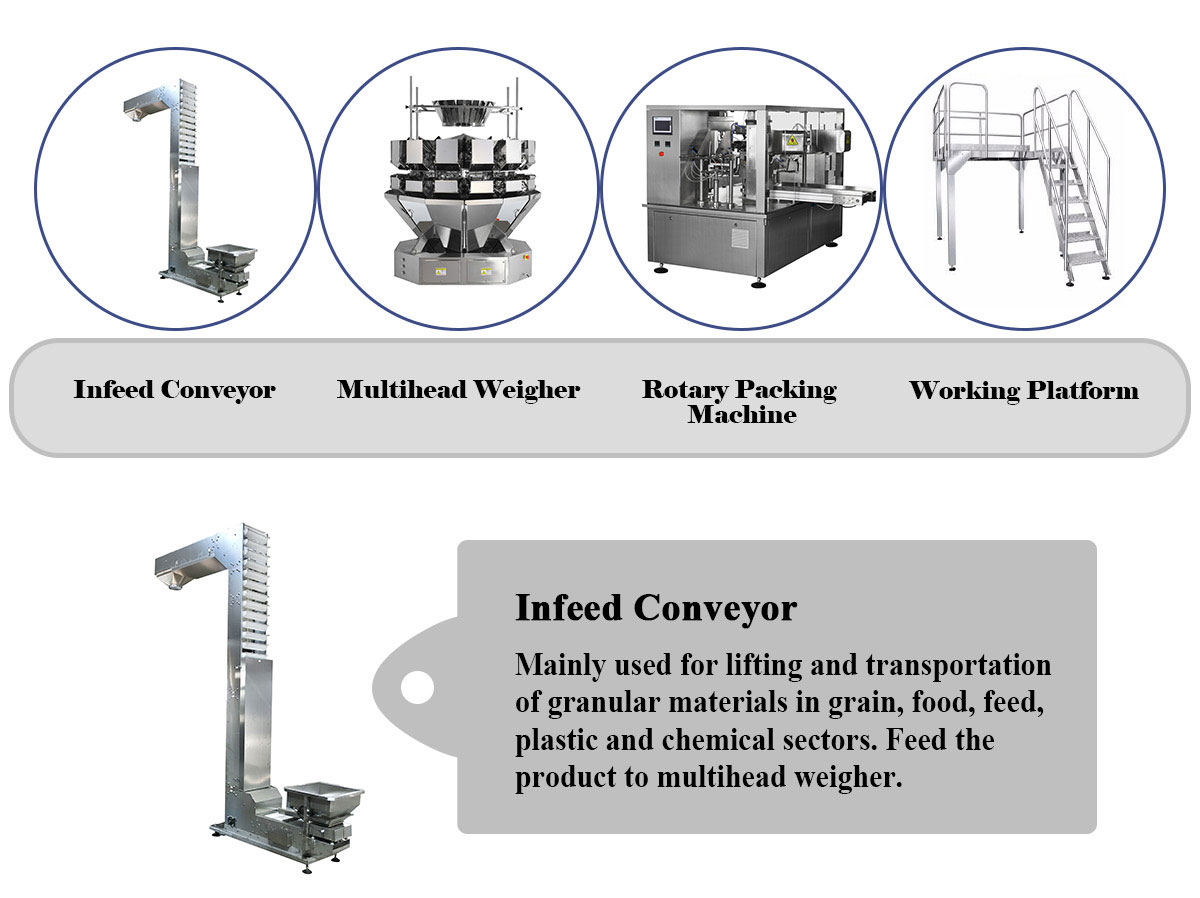

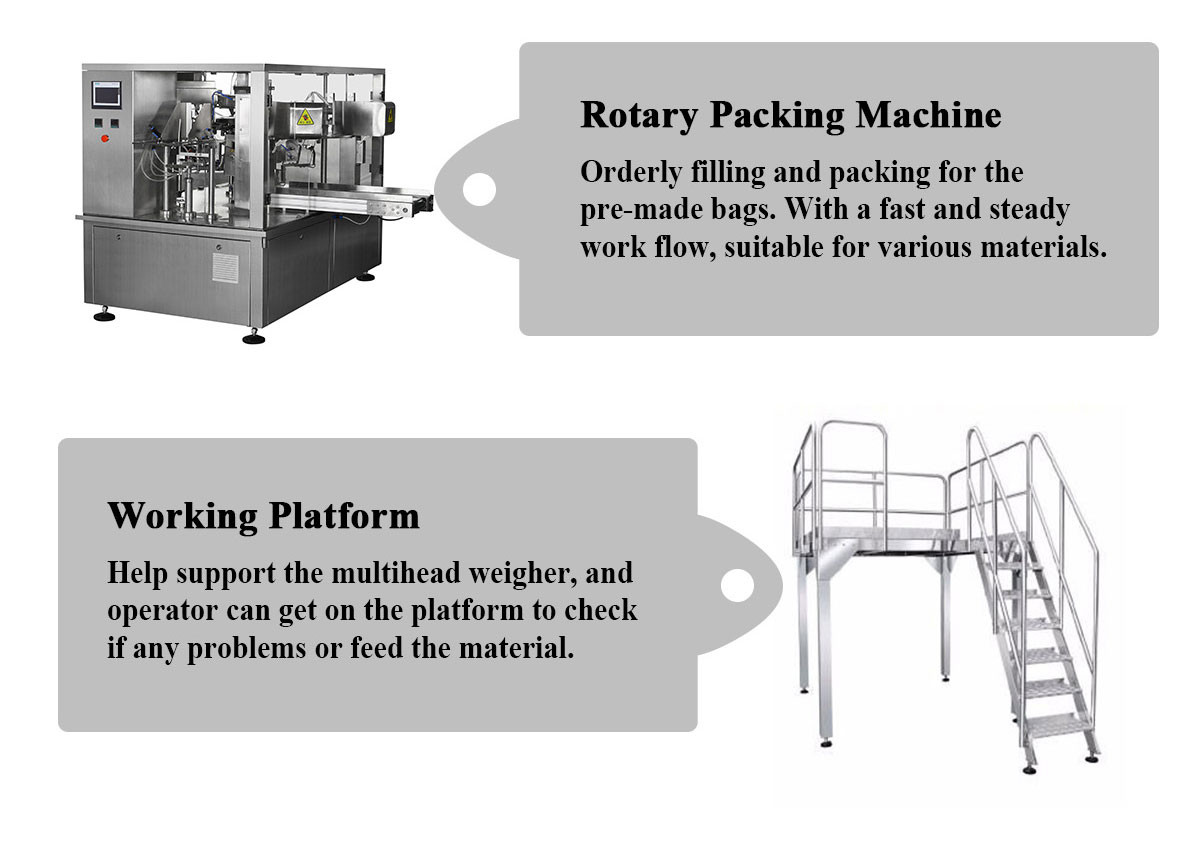

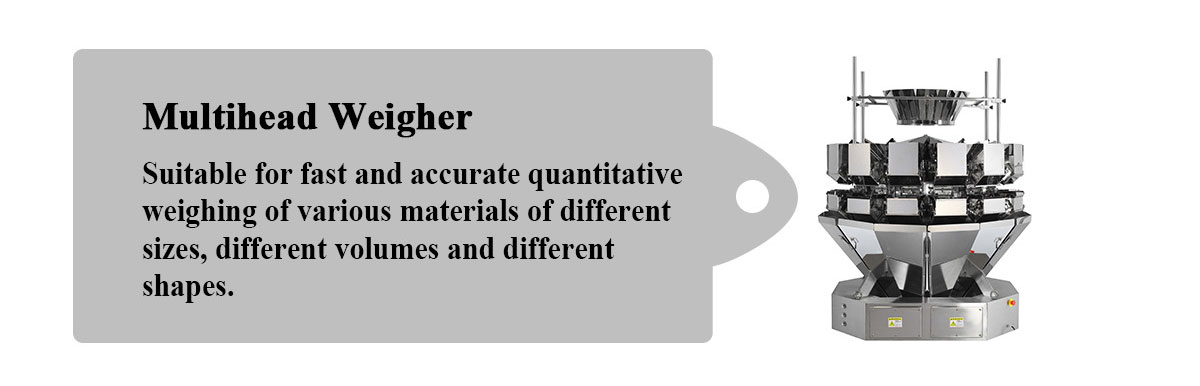

AIPAK Gummy Packaging Machine Details:

gummy packaging machine details

AIPAK Gummy Packaging Machine Sample Display:

FEATURE

1.Different machine models available to meet a wide range premade bag size.

2.Customized main machine structure for various kinds of bag shapes.like doypack zipper bag ,4 side seal bag,strand up bag and irregular bag,ect.

3.Multiple working station to meet fullautomatic process of bag pickup,date printing,bag opening,filling,bag arranging ,sealing and output.

4.With upgrade PLC control system，machine is easy for operation on touch screen of parameter setting.

5.Machine can equipment with different metering system like weigher,liquid pump,auger filler,bucket chain for different kinds of product filling and packing in premade bag.

DATA SHEET

Model	APKRL200-G	APKRL260-G		APKRL320-G
Pouch pattern	Laminated film PP/PE Foil
Bag Size	W:80~200mm L：≤100-350mm	W:140~260mm L：≤350/450mm		W:180~320mm L：≤450mm
Filling Scope	10-1500g	10-1500g			10-1500g
Packing Speed	10~70bags/min	10~55bags/min			10~45bags/min
Total Power	5KW
Voltage	380v 3phase 50Hz
Weight Accuracy	≤±1%		≤±1%	≤±1%
Compressed Air Consumption	0.6m3/min（Compressed air provided by the user） Compressed Air Consumption）
