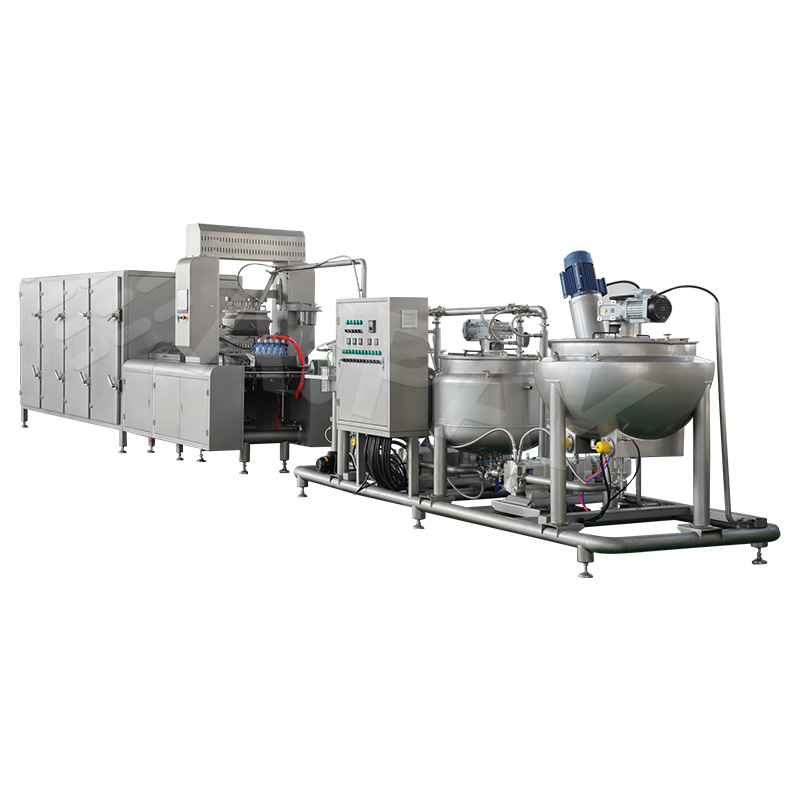

APK-GM80Q Small Scale Gummy Making Machine

Easy operation and cleaning
Single-color candy, double-color candy, and center-filled candy Available
Teflon coated mould

APK-GM80Q Small Scale Gummy Bear Manufacturing Equipment Up to 80kg Gummies /hr

AIPAK APK-GM80Q small scale bear gummy manufacturing equipment is is a space-saving compact equipment, which requires only L(13m) * W (2m) to install. It can produce up to 36,000* gummies per hour, including the whole process of cooking, depositing and cooling,It is perfect for small to medium production runs.

Cooking System

AIPAK gummy bear manufacturing equipment is made of jacket cooker and storage tank.It is the electric control cabinet controls the processes of stirring, boiling, mixing, storage, etc. The jacket cooker is used to dissolve raw materials, the formula ratio of glucose syrup, sugar, water, gel powder, etc. is put into the cooker, melted, and boiled, after boiling to a certain temperature, transferred to the storage tank through the pump to ensure continuous production. The plates and racks are made entirely of stainless steel.

The cooker can be electric or steam heating, the tank is heated by a warm water layer, with stirring, connected with the hot water tank, used to slightly reduce and maintain the material temperature so that the liquid temperature is uniform, and the syrup after cooking is transported to depositing machine through the pump.

Depositing&Cooking Unit

AIPAK gummy bear manufacturing equipment depositing &cooking unit is used for the continuous production of various shapes of candies.It is after years’ research and improvement,now the depositing&cooking unit has been improved with higher automation and longer service life. It is an ideal equipment for the production of high-grade candies, which can produce single-color candy, double-color candy, and center-filled candy.

Gummy Mold With Quick Release Tool

AIPAK gummy bear manufacturing equipment the mold can be metal with a non-stick coating or silicone rubber with either mechanical or air ejection. They are arranged in sections that can be easily removed for changing products, cleaning coating.

Mold shape: Gummy bear, Bullet and cube shaped

Gummy weight: Ranging from 1g to 15g

Mold material: Teflon coated mould

FEATURE

PLC /computer process control available;
An LED touch panel for easy operating;
The production capacity is 80,150,300kgs/h(based on 4.0g gummy candy ) or more;
The contacting food parts are made of hygienic Stainless Steel SUS304
Optional (mass) flowing controlled by Frequency inverters ;
In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
Dosing pumps for the automatic injection of colors, flavors and acids;
One set of extra jam paste injection system for making fruit jam-center filled candies(optional);
Use an automatic steam control system instead of the manual steam valve which controls a stable steam pressure supplying to the cooking.
Moulds can be made according to the candies samples provided by the customer.

DATA SHEET

Model	APK-GM80Q	APK-GM150	APK-GM300	APK-GM450	APK-GM600
Capacity	80 kg/h	150kg/h	300kg/h	450kg/h	600kg/h
Candy weight	As per the candy size
Depositing Speed	25～35 n/min	25-45n/min
Steam requirement	80kg/h, 0.4-0.6MPa	250kg/h, 0.5-0.8MPa	300kg/h, 0.8-1.2MPa	400kg/h, 1.2-1.6MPa	500kg/h, 1.6-1.8MPa
Compressed air requirement	0.2m3/min, 0.4-0.6MPa	0.2m3/min,0.4-0.6MPa	0.2m3/min,0.4-0.6MPa	0.25m3/mi,0.4-0.6MPa	0.3m3/min, 0.4-0.6MPa
Working condition	Temperature 20℃-25℃；Humidity45-55%
Electric power needed	55kw/380V	65kW/380V	75kW/380V	80kW/380V	85kW/380V
Total Length	8m	16m	18m	18m	20m
Weight of machine	2500kg	3500kg	4000kg	4500kg	5000kg
