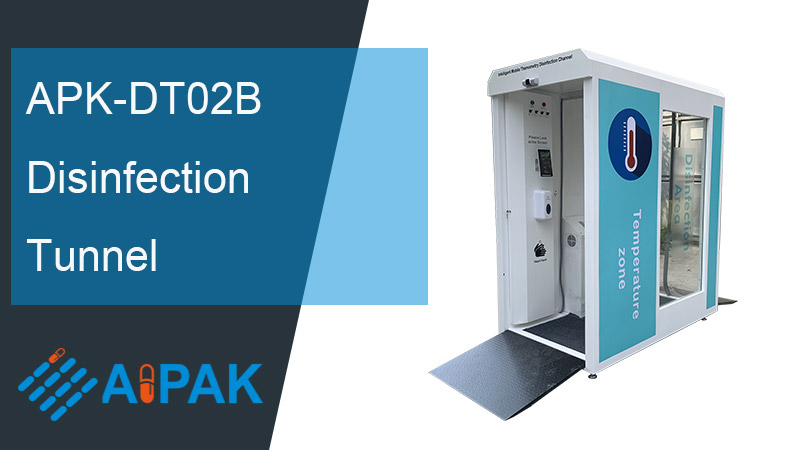

APK-DT02B Disinfection Tunnel
Product Introduction
AIPAK APK-DT02B disinfection tunnel is powerful, adopts, lightwave sterilization, 360 ° all-round sterilization and anti-virus technology, atomized nozzles are densely covered inside the door frame, and matrix-type dead-end whole-body sterilization. Humanized, reasonable layout, will not cause discomfort to the respiratory tract and other organs.
At the same time, the human body temperature alarm and the thermal imaging body temperature detector can be added to detect the body temperature of the personnel.
The disinfection solvent is food-grade, and non-contact disinfection is adopted for passing persons and articles.
The overall stainless steel material is resistant to corrosion and deformation and can be easily moved. 220V / 110V, convenient to switch, simple to operate, economical and environmentally friendly, used directly after purchase, saves time and labor, and is suitable for schools, hotels, stations, shopping malls and other crowded places.
FEATURE
Product performance characteristics:
- Intelligent 8-inch LCD, body temperature display and face comparison function;
- Automatic induction ultrasonic spray function, thinning throttling, do not hurt the human skin;
- Face recognition, visitors, temperature measurement, attendance function in one;
- High precision infrared thermal imaging module temperature measurement, abnormal voice sound light alarm;
- The hand intelligent non-contact spray sterilizer is safe and hygienic and effective in killing the opponent.
- Disinfection function of sole and wheel;
- The movable function of whole machine channel;
- Automatic access control sensing function;
- Ultrasonic atomization and omnidirectional spray disinfection;
- The foldable auxiliary channel, suitable for all kinds of people to pass, convenient access;
- Glass observation window;
- Channel lighting function.
Product export description
- 40GP standard cabinet is adopted: length 12.192m x width 2.438mx width 2.591m; internal dimension: length 12.032m x width 2.352m x height 2.385m. One cabinet can hold 12 sets of this product (it is not necessary to pack wooden cases for goods in a standard cabinet normally). 20gp standard cabinet, 6 sets of this product can be installed
- This product needs to be loaded in 20gp or 40gp cabinet.
- This product is shipped in Lishui, Zhejiang. The nearest port to us is the Shanghai port and Ningbo port.
- The company has the export CE certificate of the product, see Annex I for details
- If the order quantity is less than one high cabinet, it needs to be packed in a wooden case. The specification after the packing is: width 1140 * height 2300 * length 1930mm (the price of each wooden case shall be increased by 1000 yuan)
DATA SHEET
Model: APK-DT02B; Rated power: ≤ 300W;
Working power supply: 100-240Vac 50 / 60Hz;
Working environment: temperature 0-35 ℃, humidity ≤ 90%;
Atomizer: ultrasonic atomization; Atomization time: 0-60s adjustable;
Disinfectant: non toxic and tasteless disinfectant;
Lack of liquid indication: support; Volume of disinfectant: 25L;
Volume of hand sanitizer: 1000ml; Display :8 inch LCD;
Audio stereo speaker;
The accuracy of temperature measurement range is 32-45 ℃ ≤ 0.4 ℃;
Detection method: non-contact, infrared thermal imaging;
Live recognition: support, infrared sensing Recognition speed: 200-300ms; Operating noise: ≤ 38dB; Equipment weight: About 365kg
Floor area: 3.5 square meters;
Channel size: W: 700 * H:1900 * L: 1800mm;
Boundary dimension: W: 1100 * H:2230 * L:1800mm;
Package size: W: 1140 * H:2300 * L:1930mm;
Service hotline::4006-752-752;
