• Temperature adjustable

  • With easy-draught device

  • All parameter is displayed on the touch screen

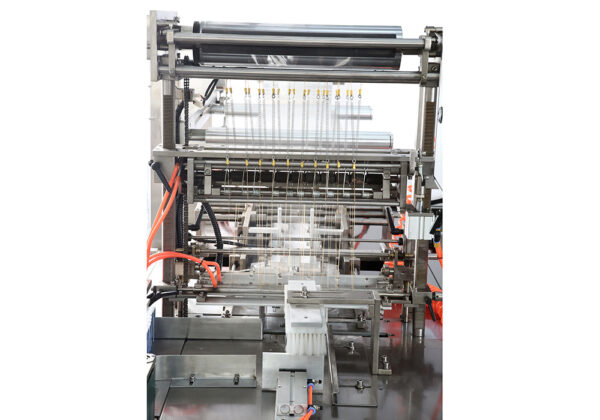

APK-400E Automatic cellophane overwrapping machine

AIPAK APK-400E Automatic cellophane overwrapping machine is suitable for the automatic packing of box-shape single objects or box-shape single objects or box-shape many objections such as pharmacy, food, health products, tea, cosmetic present stationary, audiovisual products etc. It can replace the box in the paper and also can reduce the packing cost about 95%. Using the machine to pack can defend takeproof moisture and proof dust , and etc. With AIPAK overwrapping machine you can improve the productions level , increase the productions additional value .And the overwrapping machine can be linked to with boxing machine to compose packing production line.

Now AIPAK overwrapping machine is widely applied in the products,such as Medical box,Gum,Health pducts,Tea-leaf,Cubic-sugar,Disk,condom,Cigarette,tape,Poker,Soap,Square-share battery,and etc.

The overwapping machine is also known as cellophane wrapping machine is majorly used for perfume carton wrapping,perfume box wrapping.It is majorly used for clear film wrapping for condom box,condom cartons.And it comes in category of wrapping machine for sealing of cartons.Carton overwrapping is main application for all types of cartons packing,box packing,in perfume bottles to seal the film for aesthetic sense.

The machine provides high work speed from 5-30packages one minute,range of sealing bar widths and a multiple sealing bar option.For all applications that require longitudinal sealing on the bottom of the product.

There are a number of different feeding systems although the standard one has push rods.Provide good protection to products to dustproof waterproof.

Overwrapping Machine Details:

part of overwrapping machine part of overwrapping machine

part of overwrapping machine part of overwrapping machine

Overwrapping Machine Sample Display:

overwrapping machine same display

FEATURE

  1. Adopting the man-machine interface , PLC control, Failures diagnosing software .
  2. Adopting the servo motor to feed film. The speed and the length can be adjusted .Using the film smooth and length accurate.
  3. Adopting full cylinder drive .Steady running .accurately Synchronizing .conveniently adjusting hard sealing.
  4. Compact structure .Easy to operation and Manipulating, complete safety device.

DATA SHEET

Model

APK-300E

APK-400E

Packaging material

OPP,BOPP , PVC

Production capacity

5-30package/minute

Bag size

L(50-300)* W(40-220)* H(10-90)mm

L(50-400)* W(40-250)* H(10-90)mm

Power supply

AC380V 50Hz, 6.5Kw

Working pressure

0.6 Mpa

Air consumption

400L/min

Weight

750kg

850kg

Outline dimensions(mm)

2450*900*1750mm

2450*1000*1750mm

Size of feed table(mm)

1650*320*930
