7 Points You Must Know Of The High-speed Aluminum Blister Packaging Machine

1.The High Speed Development Of High-speed Aluminum Blister Packaging Machine

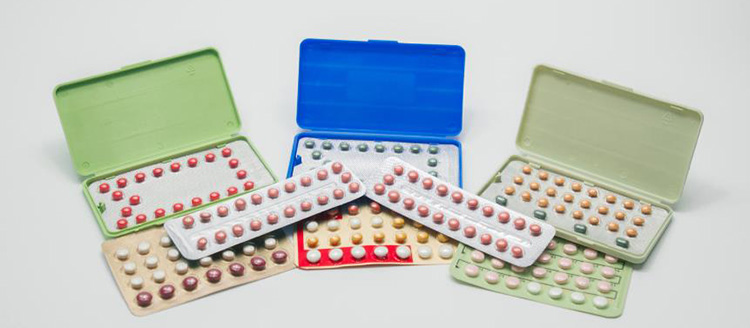

High-speed aluminum blister packaging machine is a new form of packaging for solid pharmaceuticals.

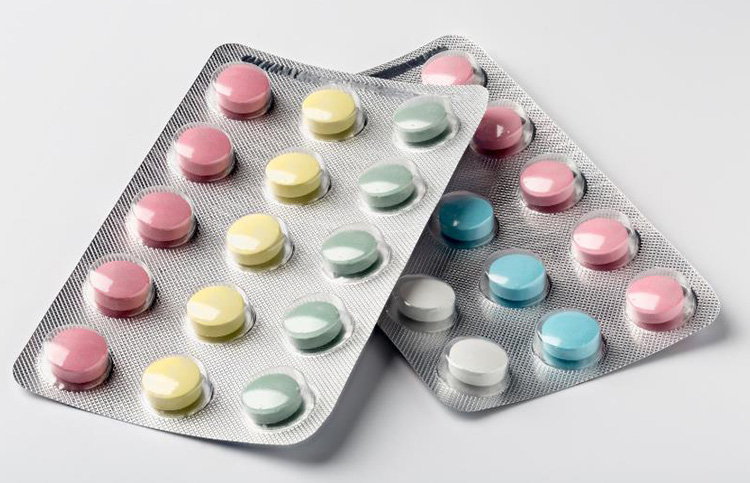

After first blistering and moulding the transparent plastic hard sheet, the tablets, pills, capsules and other solid drugs are filled in the grooves and then heated and bonded together with the aluminium box sheet coated with adhesive to form an independent sealed package.

At present, many domestic solid drugs are still packaged in glass bottles, which are protected from light, moisture and oxidation, but have a large packaging capacity and low technological content.

For the high requirements of special drugs, this traditional form of packaging will not be able to effectively prevent drug dampness and mildew, which is an important reason why the large-capacity brown glass bottle packaging is being rapidly withdrawn from the market in recent years.

Compared with bottled drugs, blister packaging is easy to carry, can reduce the pollution caused by drugs in the process of carrying and taking, that is, blister packaging has obvious advantages in the gas barrier, moisture permeability, health and safety, production efficiency, dosage accuracy and extend the shelf life of drugs .

The good barrier properties of blister packs are due to the choice of the raw material aluminium foil and plastic rigid sheets. The aluminium box has a highly dense metallic crystal structure with good barrier and light-shielding properties, while the plastic rigid sheet must have sufficient barrier properties against oxygen, carbon dioxide and water vapour, high transparency and non-cracking mechanical strength.

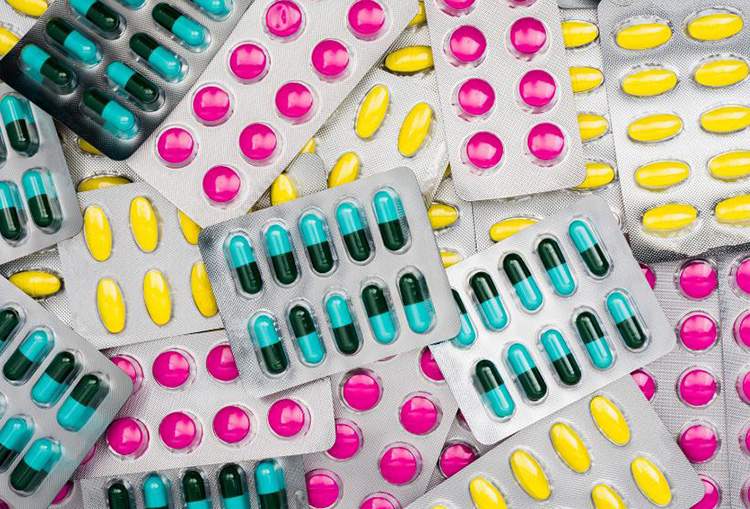

Currently, the most common pharmaceutical blister packaging materials are PVC sheet and PVDC (polyvinylidene chloride).

2.Features Of High-speed Aluminum Blister Packaging Machine

Adopt anastomosing heating of the plates that minimises the heat loss of the heater and reduces the required temperature of the heater; equipped with a set of universal feeder with a filling rate of more than 99.5%, the feeder can be equipped with a dust-absorbing interface to eliminate the problem of dust formed in the feeding process.

With disc vibratory feeding, high frequency cutting and large area forming ensures a production capacity of 23,400 plate hours with adjustable stroke.

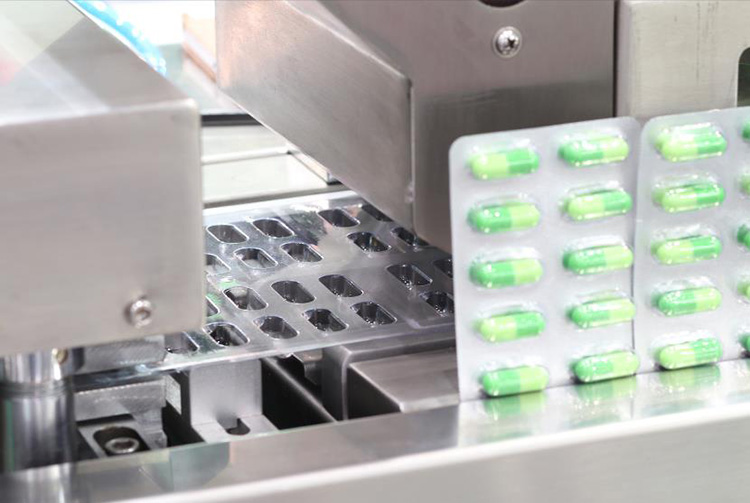

The high speed aluminum blister packaging machine is suitable for a wide range of products with different sizes. Stable working, ensuring synchronization, accurate cutting, material saving, the finished products cut out can be pushed out in an orderly arrangement without manual finishing, facilitating the next boxing process, the body of the machine adopts split packaging, convenient for you to enter the lift and the divided purification workshop, that is easy assembly with the screw-fastened cylindrical pins for positioning when combined.

3.Application and Precaution of High-speed Aluminum Blister Packaging Machine

Precautions for high speed aluminium blister packaging machines:

• Do not install, rubber wheels under the machine base, can be moved.
• Your operators should be trained to operate and maintain.
• Earth wire should be connected at the location specified by the grounding label.
• Machine should be kept neat and tidy.
• All parts of the machine must be oiled before production.
• The machine is supplied with lubricating oil in the drive box and must be refuelled before production.
• It is advisable to use an oil-free air compressor for this machine.
• The pressure in the forming, heat sealing and creasing parts should not be too high, otherwise it will affect the service life. Forming and creasing of the type pad should be left a floating margin of about a millimeter.

High-speed aluminium blister packaging machine application range:

It is suitable for: capsules, tablets, sugar coating, pills, injections, shaped, etc., as well as medical devices, light chemical food, electronic components blister sealing packaging.

It is mainly used for packaging capsules, tablets and other solid pharmaceutical packaging machine, the use of internal heating form, is currently the smallest and most advanced at home and abroad the price of the lower models.

4.High-speed Aluminum Blister Packaging Machine Blister Forming Principle

High-speed blister packaging machine blister forming is an important process of the entire packaging process, blister forming methods can be divided into the following four types:

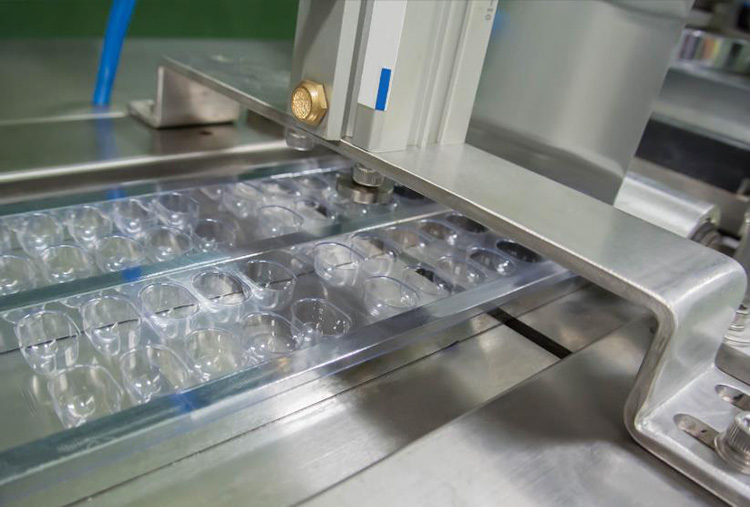

A.blister forming (negative pressure forming)

The use of vacuum to heat the softened film into the molding mold blister nest, forming a certain shape, to complete the blister molding. The blister is generally formed by using a roller mould, the scale of the blister is small, the shape is simple, the blister is unevenly stretched and the top is thin.

B.Blow molding (positive pressure molding)

Using compressed air to blow the heated and softened film into the blister nest of the molding mold, forming the desired shape of the blister. Blow moulding is mostly used for plate moulds, the wall thickness of the moulded blister is more uniform, the shape is straight, and a larger scale blister can be formed.

C.Punch assisted blow moulding

With the help of the punch, the heated and softened film is pressed into the mould cavity, and when the punch is fully pressed in, compressed air is introduced to make the film stick to the inner wall of the mould cavity, completing the forming process.

Punch-assisted forming is mostly used for flat blister packaging, which can be used to obtain uniform, large scale and messy blister shapes after reasonable planning.

D.Convex and concave die cold stamping forming

When the rigidity of the selected packaging material is larger (such as composite aluminum), the thermal forming method is obviously not applicable, but the use of convex and concave die cold stamping forming method, that is, the convex and concave die together, the film forming process, in which the air is discharged from the exhaust holes in the molding die.

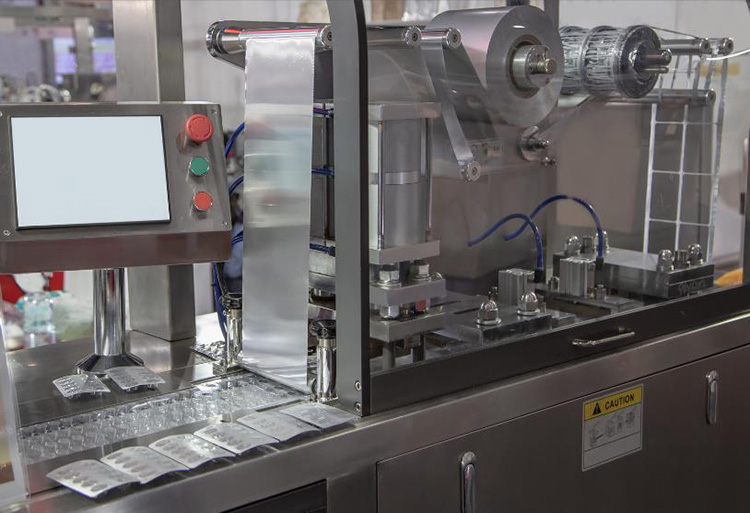

5.How To Operate High-speed Aluminum Blister Packaging Machine

The specific correct sequence of operation of the high-speed blister packaging machine is as follows.

(a) You must often check the quality of the appearance of finished aluminium and plastic products, machine operation, if there are abnormalities immediately stop to check, normal before production.

(b)The to be sealed drugs, packaging materials are well prepared, replace the batch number word template, install the PVC and aluminum foil, check the cooling water, carefully clean the equipment.

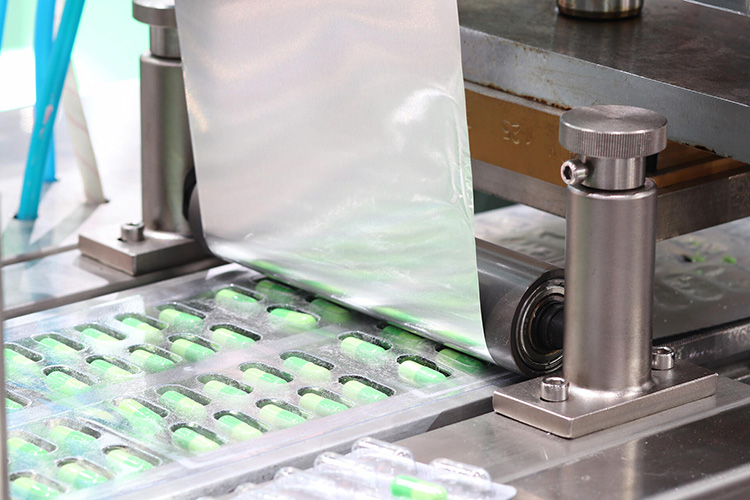

(c)When the predetermined temperature is reached, press the start switch, the main machine turns clockwise and the PVC goes around the PVC heating roller, the filling hopper, the aluminium foil heating roller, the tensioning wheel, the batch number device and the punching and cutting mould in turn.

(d)Food machinery safety and health design process, safety aspects of the design, the first need to take direct safety measures to eliminate the possible dangers of food production, to ensure that food machinery safety production with a high degree of safety

(e)Turn on the power supply and connect the compressed air.

(f)Press the heating button and set the heating and heat sealing temperature control gauges to the appropriate temperature respectively.

(g)From the point of view of indicative safety measures and additional precautions to make up for the shortcomings brought about by direct safety measures, thus ensuring that the safe and hygienic design of the food machinery meets the actual production needs and avoids the presence of dangerous factors.

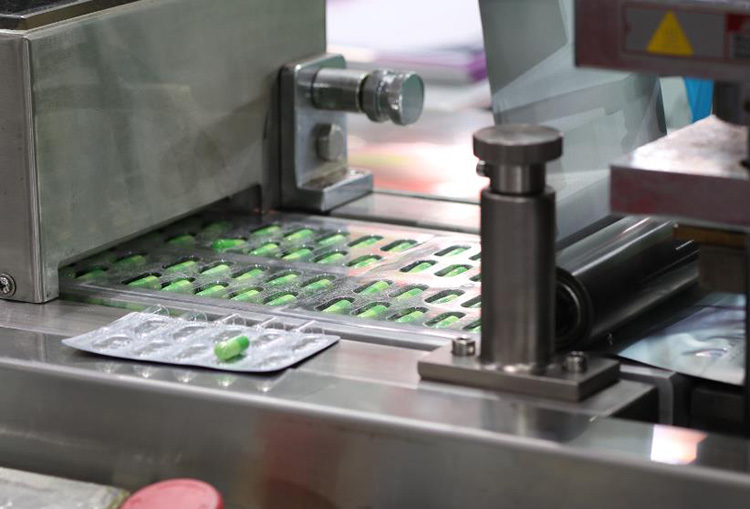

(h)Pull the PVC hard sheet through the channel under the punching knife and the aluminium foil under the heat sealing plate.

(i)Set the cooling temperature gauge to the right temperature when the heating and heat sealing plates are brought up to the right temperature (which should normally be 30°C).

6.Precautions When Maintaining The High-speed Aluminum Blister Packaging Machine

High-speed aluminium and plastic packaging machine after the use of the following matters should be noted.

• The machine should be kept clean, frequent wiping and lubrication of rotating parts.
• Cam mechanism, drive chain components should be lubricated every 15-40 working hours. It is recommended to use mechanical oil of grade 50. For gear meshing grease should be added once every three months, calcium-based grease is recommended.
• The glue machine screen and the gun holder screen should be cleaned regularly, once every 3-4 months on an 8-hour basis.
• Synchronous tooth-shaped belt and transmission tape should avoid contact with oil, so as not to reduce its service life.
• Ensure that the packaging machine can work properly and reliably, should be stopped every three months to check the tensioning of the transmission chain and the tightness of the transmission parts, if necessary, re-adjustment and tightening.
• Regular maintenance work on the packaging machine, but also to reduce the number of machine maintenance, in order to prevent the emergence of failure and preventive maintenance, maintenance prevention, routine maintenance, improvement of maintenance and other work is indispensable.
• Preventive maintenance has two basic elements, in order to detect the occurrence of downtime or other faults caused by the regular inspection of the equipment, in the initial stage of whether the above state can be ruled out for the adjustment or repair of the equipment overhaul.

Maintenance prevention: equipment maintenance is not the end purpose, but to meet the requirements of the production of equipment and can maintain a kind of activity to improve the utilization rate of equipment, basically hope that in the design of equipment, manufacturing stage, that can improve the performance of equipment

Routine maintenance: this is the daily or weekly inspection, cleaning, adjustment, lubrication and replacement of parts. This is to prevent equipment ageing, slow down the ageing rate, extend the life of the equipment and can effectively reduce repair costs.

Improvement and maintenance: When equipment breaks down, in addition to repairing the equipment, it is also important to make overall improvements to the equipment, such as changes in design and improved materials, to enhance the equipment's ability to operate and to facilitate future maintenance operations.

7.High-speed Aluminum Blister Packaging Machine Maintenance & Guidelines

The high-speed aluminum blisterpackaging machine should be wiped, cleaned and kept clean regularly.

You should frequently check the operation of the aluminumblister packaging machine, problems found in a timely manner.

According to the lubrication requirements, on time to lubricate the equipment

The work of the cooling parts can not be cut off water. Make the water supply before starting the machine, and then heating parts for heating; termination of production, the heating parts to reach room temperature before stopping the water supply.

The surface of the heat sealing roller should be kept clean, and a fine copper wire brush should be used to remove the adhering materials under heating. At the same time, the operator should pay attention to the magnitude of the operation and the distance between the hand, arm and body and the heating roller to avoid burns.

After the work is finished, turn off the power supply first, and then turn off the water and gas sources after the heating parts have cooled down to room temperature.

Abrasives in use or storage, avoid bumping and scratching, do not contact with corrosive substances.
